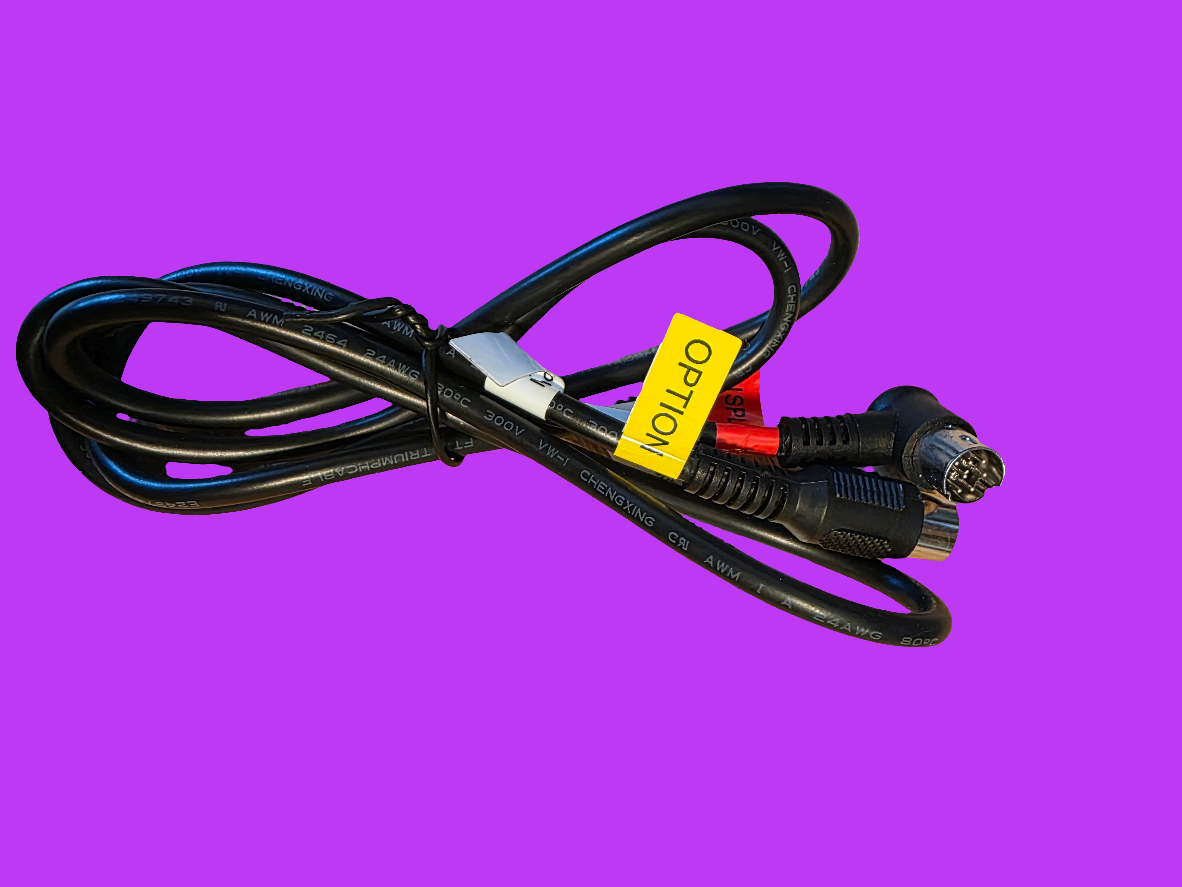

CCBL-403 6 to 8 Pin Cable Adapter NuWhirl

Meet the CCBL-403 6 to 8 Pin Cable Adapter NuWhirl—the essential bridge between your tub’s keypad and the water-sensing hardware that powers the JASON Signature Series Tubs with Digital Display (small screen). Built for both professional technicians and DIY spa enthusiasts, this adapter ensures the CITW-209-01-01-01 water sensor connects cleanly to the keypad, delivering reliable water-level readings and responsive sensor feedback.

How it works

The water sensor uses a 6-pin mini-DIN connector and plugs into the side of the tub assembly. The CCBL-403 converts that connection to an 8-pin interface that slides into the keypad, enabling seamless communication between sensor data and the digital display for accurate, real-time readings.

Key benefits

• Reliable compatibility: Tailored for JASON Signature Series Tubs with Digital Display, preventing mismatches that can disrupt readings.
• Easy, tool-free installation: Plug-and-play design shortens service time and avoids rewiring headaches.
• Versatile sensor integration: Specifically supports the CITW-209-01-01-01 water sensor setup, enabling precise water management and monitoring.
• Durable connector design: Built to withstand spa environments with secure pin alignment to prevent loose connections.
• Clear signal transmission: Preserves data integrity between the water sensor and the tub’s digital display for accurate readouts.

Who should use it

Ideal for spa technicians servicing NuWhirl systems, installers setting up JASON Signature Series Tubs, and informed owners who routinely monitor and calibrate water-sensor based controls on tubs with digital displays.

Use scenarios

• Installing a new water-sensor integration in JASON Signature Series Tubs with Digital Display (small screen).
• Diagnosing sensor-to-display communication issues where a standard DIN-to-DIN adapter would not align with the 6-pin/8-pin interface.
• Performing routine maintenance and sensor calibration by ensuring the keypad and sensor share a stable, connector-compatible link.

Tips and support

If you encounter questions due to the system’s complexity, reach our team at 951-897-1878 or Whirlybros@gmail.com for installation guidance or troubleshooting. This adapter is part of the NuWhirl ecosystem designed to simplify integration between core components while preserving display clarity and sensor reliability.

Choosing the CCBL-403 means smoother sensor-to-display communication, fewer interruptions during maintenance, and dependable water-management performance in your NuWhirl tub setup.
