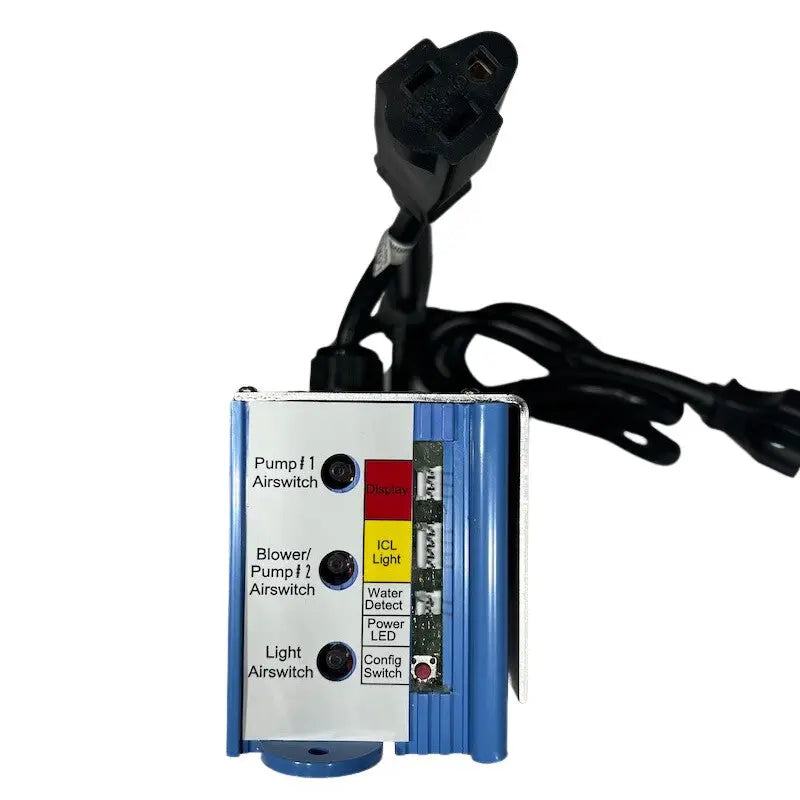

CIMC-296-01-02-01 NuWhirl 20amp Dual Load

CIMC-296-01-02-01 NuWhirl 20amp Dual Load is a compact, two-channel control box designed to streamline control for walk-in tubs and entry-level spas. By consolidating two independently controlled loads into a single enclosure—and adding built-in LED bath light control—it drastically reduces wiring clutter and simplifies installation compared with traditional multi-box setups.

Why this dual-load box stands out

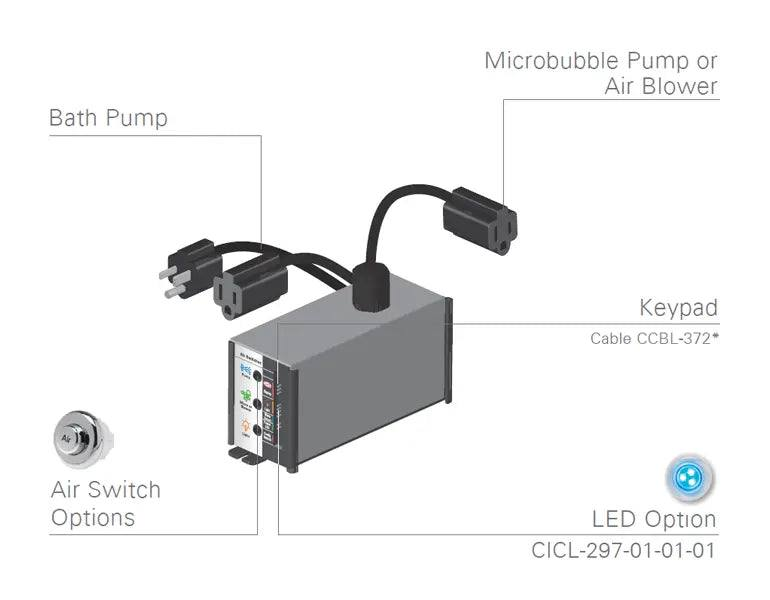

• Two independent outputs in one enclosure: manage two loads from a single 20A circuit, with up to 15A per channel. This versatility keeps wiring neat while expanding control options for pumps and lighting.
• LED bath light ready: built-in support for LED lighting means you can create ambiance without juggling separate controllers.
• Software-configurable: tune the box to match different NuWhirl tub models and pump configurations, so you get precise behavior for your installation without reworking the entire system.
• Space-saving and cost-efficient: replaces multiple boxes and extra wiring, reducing installation time and material costs while maintaining OEM-grade reliability.
• OEM-ready and widely adopted: trusted by numerous tub manufacturers, including Atlantis Tubs, Medi Tub, Ella's Bubbles, SW CORP, American Tubs, Therapy Tubs, Universal Tubs, JASON International, JASON Hydrotherapy, Mansfield Plumbing, and other NuWhirl applications.
• Compact footprint: just 6-13/16" L x 2-3/8" W x 3" H, designed to fit tight spaces behind tubs and in control panels.
• Reliable electrical ratings: 20 Amps, 125 Volts AC, 60 Hz; 15 Amps maximum per load, with total draw managed for safe operation.

Ideal applications and practical benefits

• New tub builds, remodels, or upgrades: a single, flexible control solution that replaces multiple controllers while delivering OEM-grade performance.
• Walk-in tubs and entry-level spas: a straightforward, reliable control option that handles pumps and lighting with one enclosure.
• Scalable installations: for larger configurations, pairing two units can evenly distribute loads and simplify control over pumps and lighting.

Smart setup tips

• Position strategically: place the box near the tub to minimize wiring length to each load, and ensure adequate ventilation.
• Mind the load balance: keep each load at or below 15A on a shared 20A supply to maintain safe, reliable operation.
• Plan for expansion: for bigger tubs, consider pairing units to evenly distribute control duties and reduce wiring complexity.

Availability and service

In stock and ready to ship: we carry this NuWhirl Dual Load part in our warehouse and offer same-day shipping, helping you stay on schedule for your project.

With NuWhirl’s reputation for high-performance pumps and dependable service, the CIMC-296-01-02-01 delivers precise control, reduced hardware, and a cleaner install—backed by fast availability and strong support. If you’re wiring a standard walk-in tub or an entry-level spa, this single, adaptable control solution provides the reliability and configurability you need for a flawlessly functioning installation.
