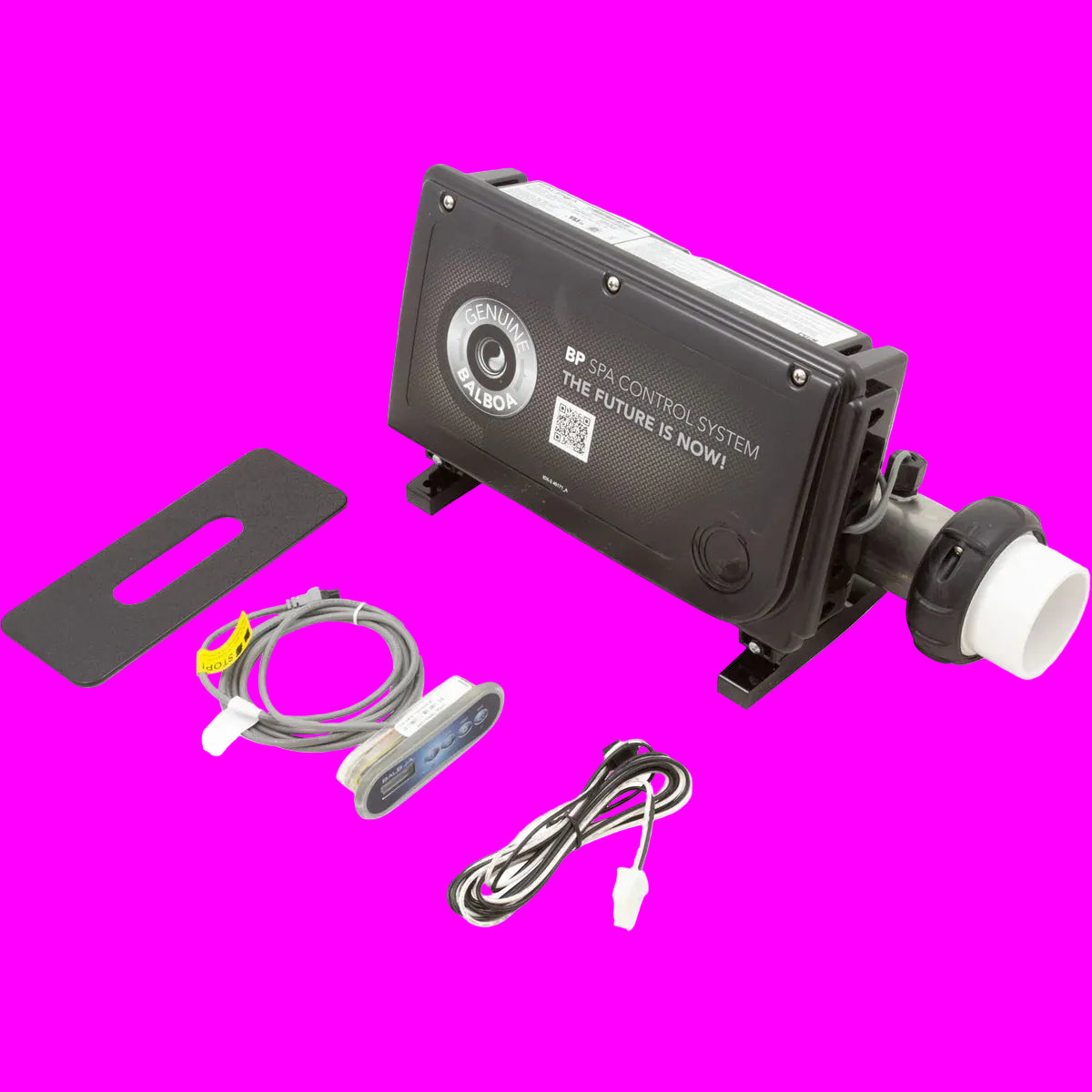

Balboa BP100G2 4.0kW Spa Control Retrofit Kit with TP200T – G6402-03
✔ FREE Shipping in the USA on Orders $100+
✔ Same-Day Shipping Available on Most Orders
✔ Expert Help Identifying the Right Part
✔ Real Technical Support Before & After the Sale
✔ Trusted by Homeowners, Plumbers & Contractors
Complete Your Repair
Most customers add these items when replacing a whirlpool pump.
The Balboa BP100G2 G6402-03 Spa Control Retrofit Kit combines a compact spa control system, an attached 4.0kW flow-through heater, and a TP200T topside keypad. It provides a replacement option for compatible hot tubs when an aging control system and keypad need to be upgraded together.
The BP100G2 supports selected one- and two-pump configurations, including setups with a separate circulation pump. Compatibility depends on your spa’s equipment, electrical requirements, and installation space.
Need help choosing the right spa pack? Send Whirly Bros photos of your existing control-box label, topside keypad, and pump labels. We’ll help review compatibility before you order.
REVIEW THE BALBOA BP100G2 TECH SHEET HERE
What’s Included
-
Balboa BP100G2 control system
-
Attached 4.0kW flow-through heater
-
Balboa TP200T topside keypad
Pump and Circulation Options
The BP100G2 can be configured for the following equipment arrangements:
| Spa Configuration | Pump 1 | Pump 2 | Separate Circulation Pump |
|---|---|---|---|
| One-pump spa | Two-speed | None | No |
| Two-pump spa | Two-speed | Single-speed | No |
| One-pump spa with dedicated circulation | Single-speed | None | Yes |
| Two-pump spa with dedicated circulation | Single-speed | Single-speed | Yes |
A separate circulation pump is supported only with a single-speed Pump 1 configuration. Pump 1, the circulation pump, and ozone must share the same configured voltage.
Available outputs and operating limits depend on the selected setup. The circulation or filtration pump must also meet the heater’s flow requirements.
Will This Replace My Existing Spa Control?
The G6402-03 retrofit kit may be suitable when replacing an older spa control system, provided the connected equipment and installation requirements match the BP100G2’s supported configurations.
Before ordering, check:
-
Existing system: model and part number on the control-box label.
-
Pumps: number of pumps, voltage, speeds, and current draw.
-
Accessories: circulation pump, ozone, lighting, and other connected equipment.
-
Physical fit: mounting space and heater plumbing alignment.
-
Keypad opening: TP200T dimensions compared with your existing cutout.
Existing equipment cords, plumbing, or the keypad opening may require modification. An older keypad should not be assumed compatible with the BP100G2; this kit includes the TP200T for the upgrade.
Heater Output and Electrical Configuration
The included heater is rated 4.0kW at 240V.
The BP100G2 also supports 120V operation in specified configurations, with heater output reduced to 1.0kW at 120V. Available equipment combinations and electrical limits differ between configurations.
The system must be configured to match your spa’s electrical supply and connected equipment. Selecting a 120V setup does not provide 4.0kW heating.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Balboa Water Group |
| Kit Part Number | G6402-03 |
| Product Family | G6402 |
| Control Platform | BP100G2 |
| Included Topside | TP200T |
| Heater Type | Attached flow-through |
| Heater Output at 240V | 4.0kW |
| Heater Output at 120V | 1.0kW in supported configurations |
| Pump Support | Selected one- and two-pump configurations |
| Circulation Pump Support | With single-speed Pump 1 configurations |
| Configuration | Must be selected to match the installed equipment |
Frequently Asked Questions
Does the G6402-03 include a keypad?
Yes. This kit includes a Balboa TP200T topside keypad, along with the BP100G2 control system and attached heater.
