CSLC-317-01-01-01 Pump Control Plus Tub Light with Timer

CSLC-317-01-01-01 Pump Control Plus Tub Light with Timer

The CSLC-317-01-01-01 Pump Control Plus Tub Light with Timer is a compact, reliable control system. It acts as a replacement for single-speed whirlpool bath pumps and multi-color LED tub lights. Factory preset to Configuration #2 – Single Speed Pump & Light, this box ensures simple and dependable operation.

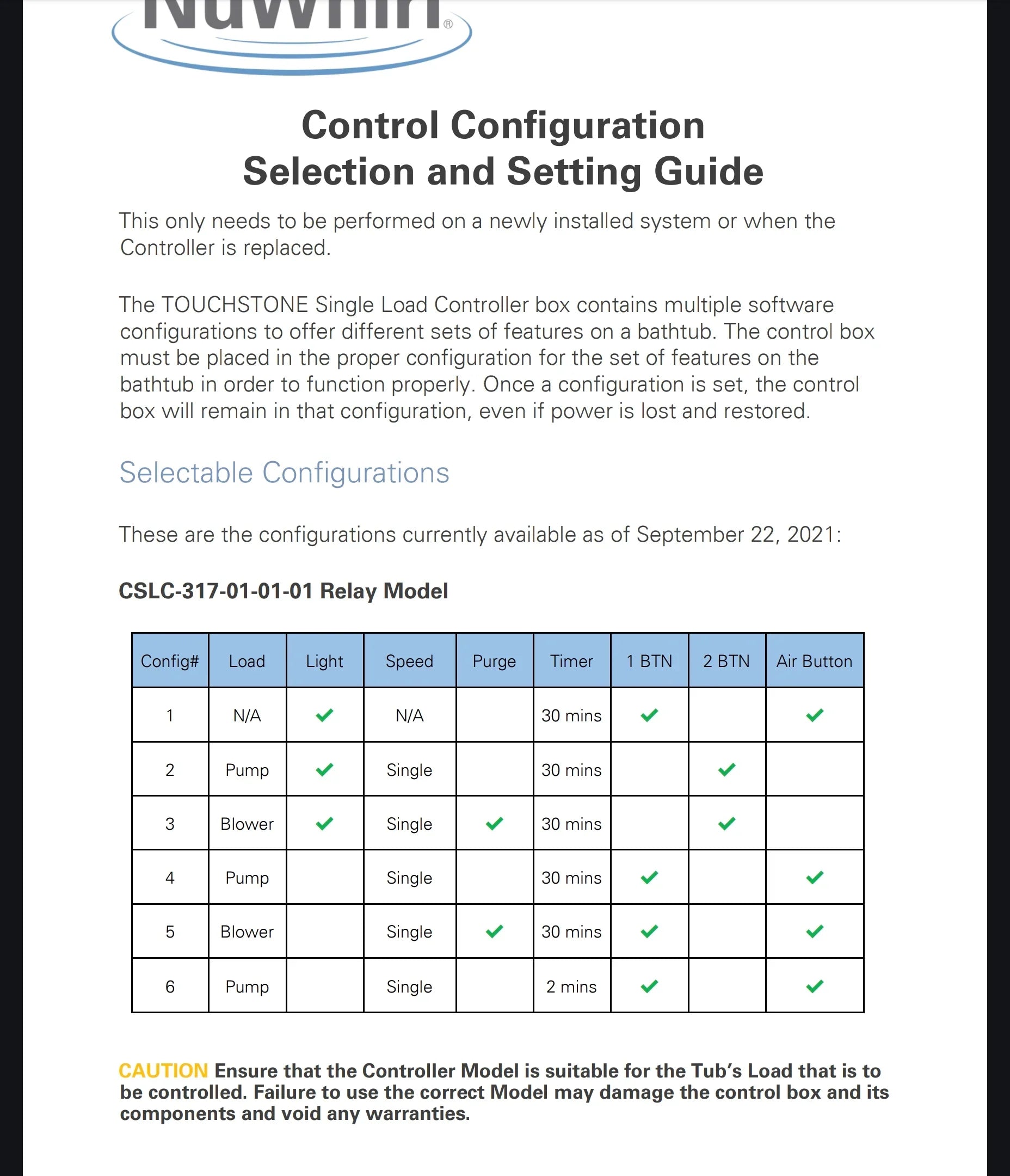

Configuration #2 – Whirlpool Bath Replacement System

This box by NuWhirl Systems offers an affordable way to replace many original OEM systems. It supports single-speed pumps and multi-color LED tub lights with ease. The 30-minute safety timer increases safety and energy savings for both pump and light. This system works with many whirlpool bathtub brands.

Ideal Replacement for Many Whirlpool Tub Systems

This unit is excellent for various situations. It replaces outdated OEM systems and is a smart upgrade. Service technicians find it useful when repairing tubs. Homeowners benefit from this simple, dependable retrofit solution. Its compact design fits in tight spaces, about one-third the size of many comparable units.

Key Features of the CSLC-317-01-01-01 Pump Control Plus Tub Light with Timer

• Factory preset to Configuration #2 – Single Speed Pump & Tub Light
• Replaces many original whirlpool bath systems
• Automatic 30-minute safety timer for pump and light
• Compact, space-saving design fits tight installations

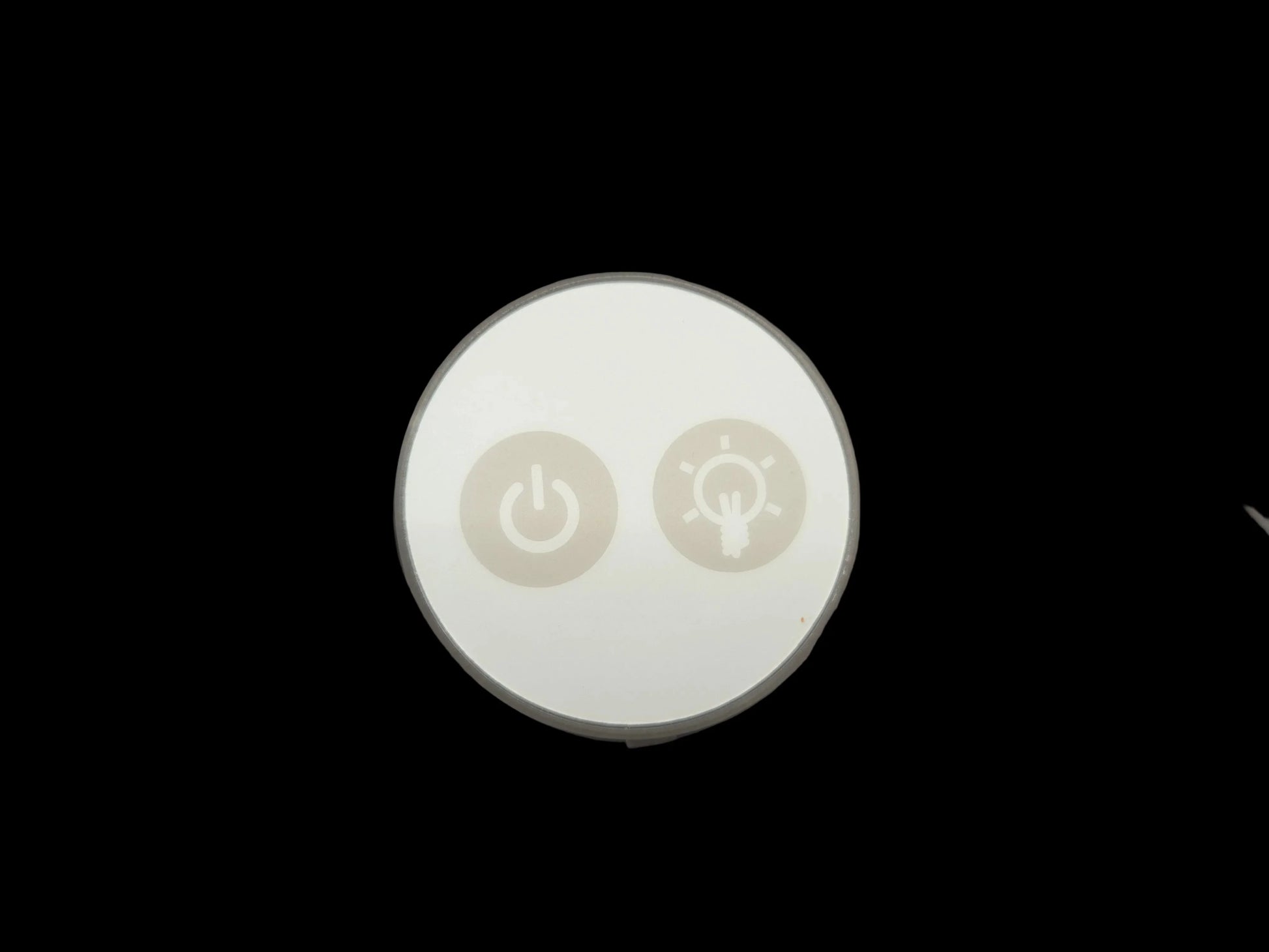

• Operates with an easy 2-button keypad for a 1-1/2" mounting hole
• Compatible with multi-color LED tub lights for customizable lighting
• Simple On/Off relay operation for straightforward use
• Easy installation and servicing keeps maintenance hassle-free
• Affordable OEM replacement solution by NuWhirl Systems

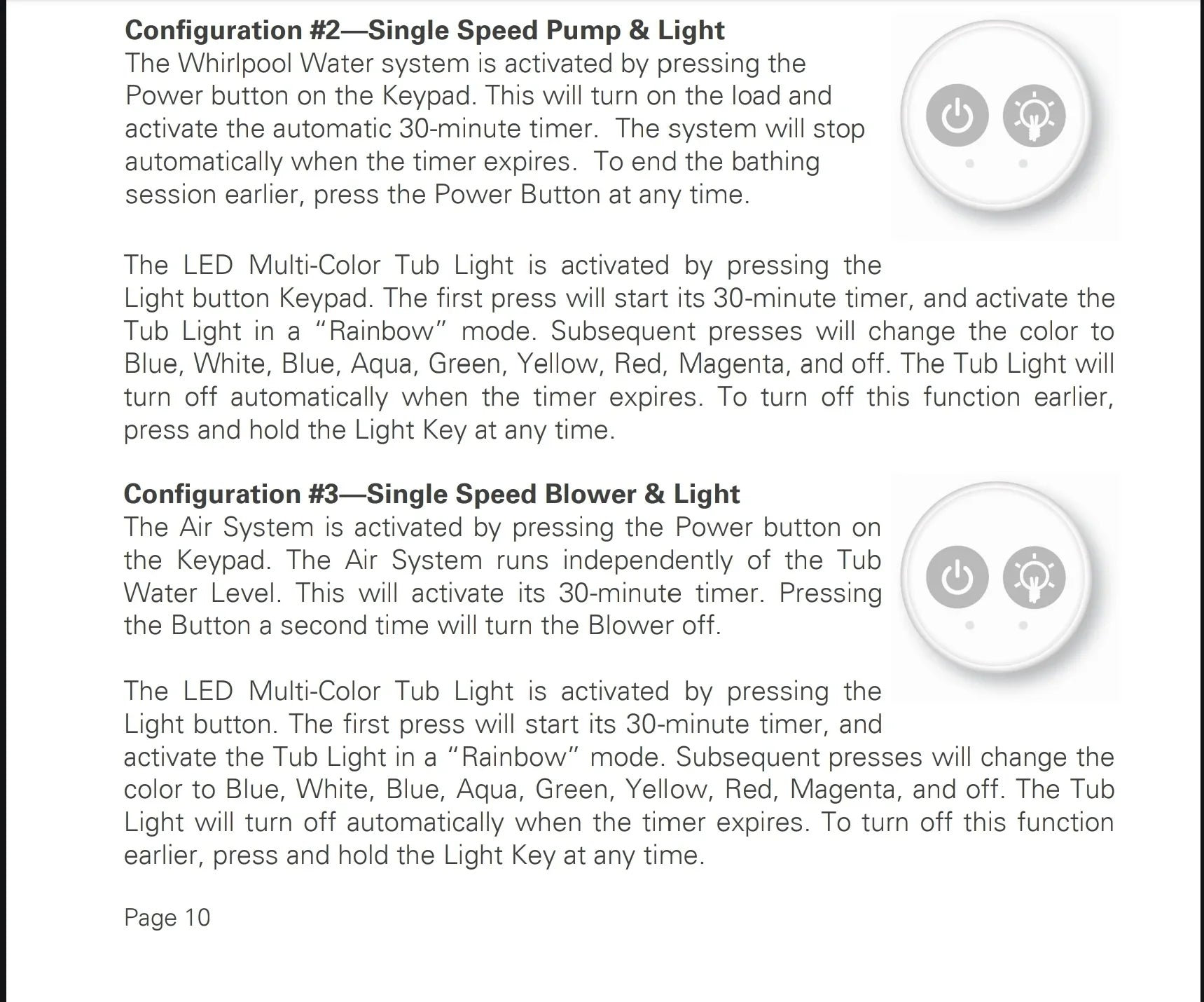

How the Configuration #2 Operation Works

Pump Operation (Single Speed)

The pump activates by pressing the Power button on the 2-button keypad. Press once and the pump turns ON, starting a 30-minute countdown timer. The system shuts off automatically when the timer ends. You can manually turn off the pump anytime by pressing the Power button again.

LED Multi-Color Tub Light Operation

The LED tub light is controlled by the Light button. Press once to activate a 30-minute countdown timer and start “Rainbow” mode. Each subsequent press cycles colors: Blue, White, Aqua, Green, Yellow, Red, Magenta, then Off. The light switches off automatically when the timer ends. To turn off early, press and hold the Light button.

Technical Specifications

• Voltage: 120V standard power supply compatibility
• Frequency: 60Hz
• Pump Capacity: Supports up to 13.5 amp single-speed pumps
• Control Type: Multi-function pump and light control box
• Timer: Built-in 30-minute automatic shut-off for safety
• Keypad: 2-button control for easy use
• Configuration: Factory preset to Configuration #2 for single-speed pump and light

Why Choose the CSLC-317-01-01-01 Pump Control Plus Tub Light with Timer?

Select this product if you need a cost-effective, reliable replacement solution. It is simple to install, compact, and easy to service, ideal for technicians and homeowners. Its solid build guarantees long-lasting performance. Manufactured by NuWhirl Systems, it avoids the complexity and large size of older systems, providing dependable control for your whirlpool pump and tub light.

With the CSLC-317-01-01-01 Pump Control Plus Tub Light with Timer, you have a compact control box that fits tight spaces without losing functionality. Its built-in timer ensures safe use by powering off the pump and light after 30 minutes. This feature saves energy and provides peace of mind during use.
