Jacuzzi® EX69000 Replacement Pump – 115V, 2-Speed | Balboa
Share

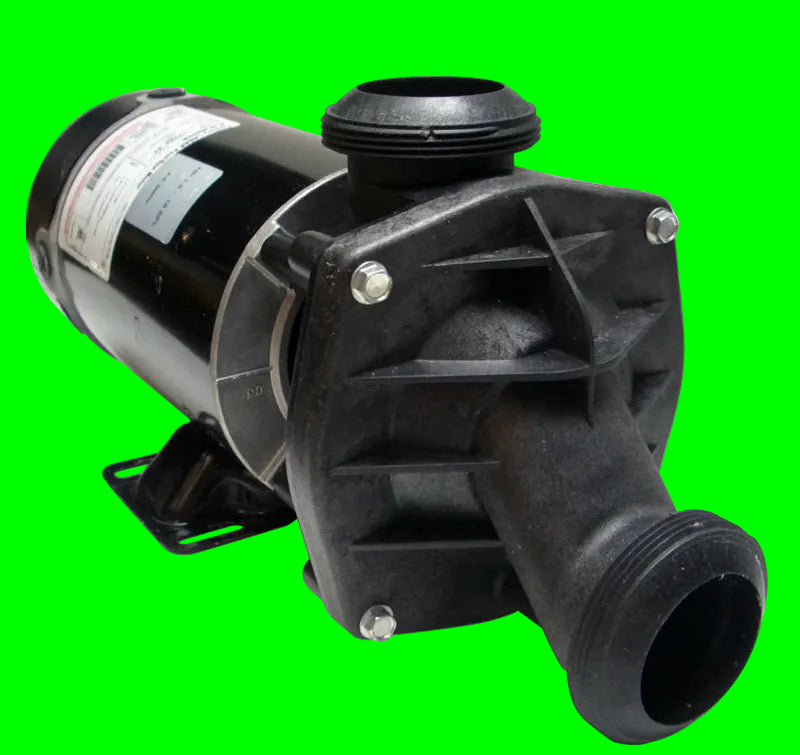

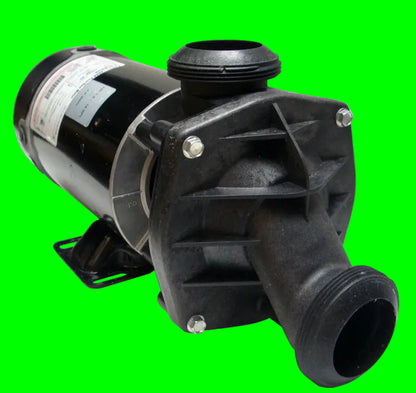

Replace your Jacuzzi® EX69000 with a Balboa-built 115V, two-speed motor and pump assembly. Intended for the EX69000 replacement application, this pump provides high- and low-speed operation when paired with compatible controls.
Power cord and pump unions are not included.
Jacuzzi EX69000 Replacement Pump Features
- 115V operation for matching electrical systems.
- Two-speed motor with high- and low-speed operation.
- Motor and pump assembly rather than a motor-only replacement.
- Manufactured by Balboa Water Group for the Jacuzzi EX69000 replacement application.
- Replacement matching assistance available from Whirly Bros.
Specifications
| Replacement Application | Jacuzzi EX69000 |
|---|---|
| Manufacturer | Balboa Water Group |
| Supplier Description | JWP 2-Speed 115V |
| Voltage | 115V |
| Speeds | 2 — High and Low |
| Included | Motor and pump assembly |
| Not Included | Power cord and pump unions |
Confirm Compatibility Before Ordering

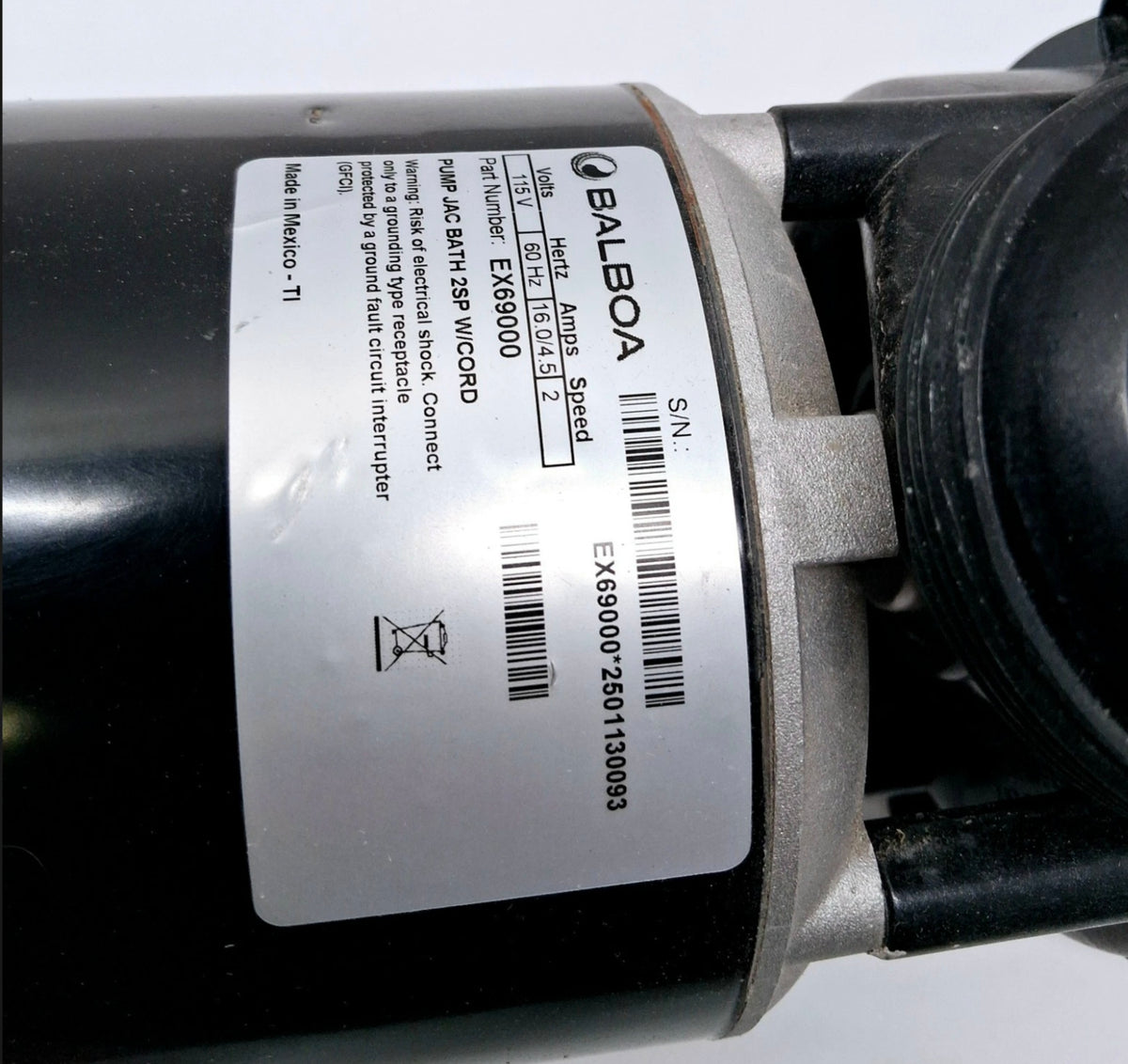

Check your existing pump label for EX69000 and compare the following details before purchasing:
- Electrical requirements: voltage, high- and low-speed amperage, and control-system ratings.
- Plumbing connections: union thread style, connection measurements, and inlet and outlet positions.
- Mounting and clearance: pump base, bolt locations, connection centerlines, and available installation space.
- Cord and controls: wiring arrangement, connector type, and compatibility with two-speed operation.
This pump is not a universal replacement for every Jacuzzi bathtub or spa. Plumbing or mounting adjustments may be required when the existing installation differs.
What's Included?
- One Balboa-built 115V two-speed motor and pump assembly for the Jacuzzi EX69000 replacement application.
No power cord or pump unions are included. Reuse existing components only after confirming their condition and compatibility with the replacement pump.
Frequently Asked Questions
Is the EX69000 a two-speed pump?
Yes. This listing is for a two-speed assembly with high- and low-speed operation. Your existing controls must support the replacement pump's wiring and electrical ratings.
Can this replace the 230V EX67000?
The EX69000 offered here is a 115V assembly. The EX67000 is a separate 230V model. These pumps are not electrically interchangeable. Choose the pump that matches your installation's voltage and control requirements.
Will my existing pump unions fit?
Compare the union threads, connection measurements, and plumbing positions before ordering. Matching pipe sizes alone does not guarantee that the existing union nuts will fit.
Does it include a power cord?
No. A power cord is not included. Your installer should confirm whether the existing cord is suitable for reuse.
Does it include a controller or keypad?
No. This listing is for the motor and pump assembly. A controller and keypad are not included.
Can this replace an older pump with a different part number?
Contact Whirly Bros with the original pump's part number and label photos before ordering. Different part numbers may require additional electrical, plumbing, or mounting checks to establish compatibility.
Need Help Identifying Your Pump?
Contact Whirly Bros before ordering with clear photos of your existing pump label, the complete assembly, plumbing connections, and control-box label. Include any visible part numbers and connection measurements so we can help compare your replacement options.
Jacuzzi® is a trademark of its respective owner. The brand name and part number identify the replacement application and do not imply affiliation or endorsement.
