Kohler 1039685 Wireless Remote Blower Replacement System
Share
System 3: Wireless Remote Blower Replacement
This version includes a heated air blower, separate wireless control box and waterproof remote. It does not require replacing the original tub-mounted keypad.
Restore a compatible Kohler BubbleMassage® air bath without replacing the bathtub. This complete aftermarket retrofit system is designed to replace discontinued Kohler 1039685 blower systems with modern, matched components and convenient wireless operation.
- Wireless operation: Control the blower using the included waterproof floating remote.
- Adjustable airflow: The control system can be configured for three-speed or variable-speed operation.
- Heated air: The blower warms the air entering the bathtub to reduce the initial cool-air sensation.
- No keypad replacement: Ideal when the original keypad cannot be safely removed from the tub.
- Automatic drying cycle: The purge cycle helps clear residual moisture from the air lines after use.
Important: This wireless system does not provide the programmed Wave or Pulse modes available with our two keypad-controlled systems.

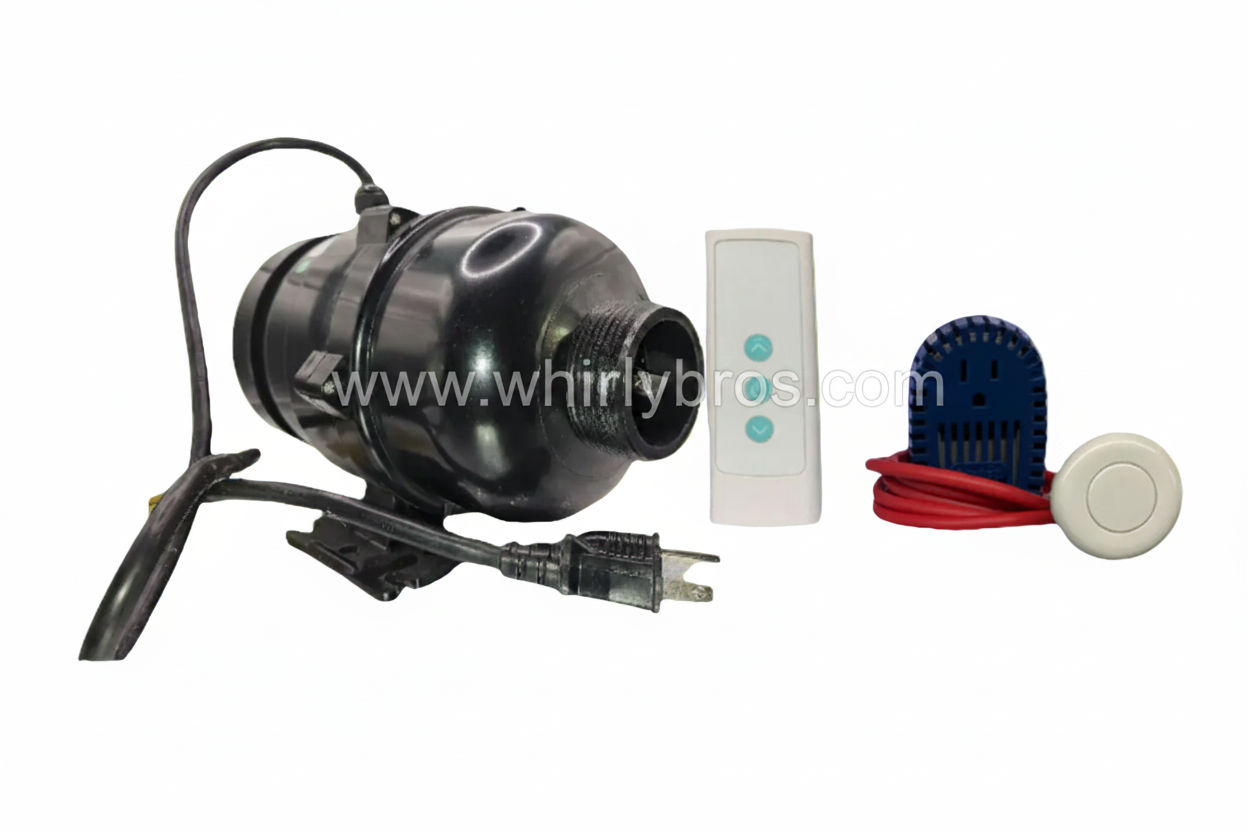

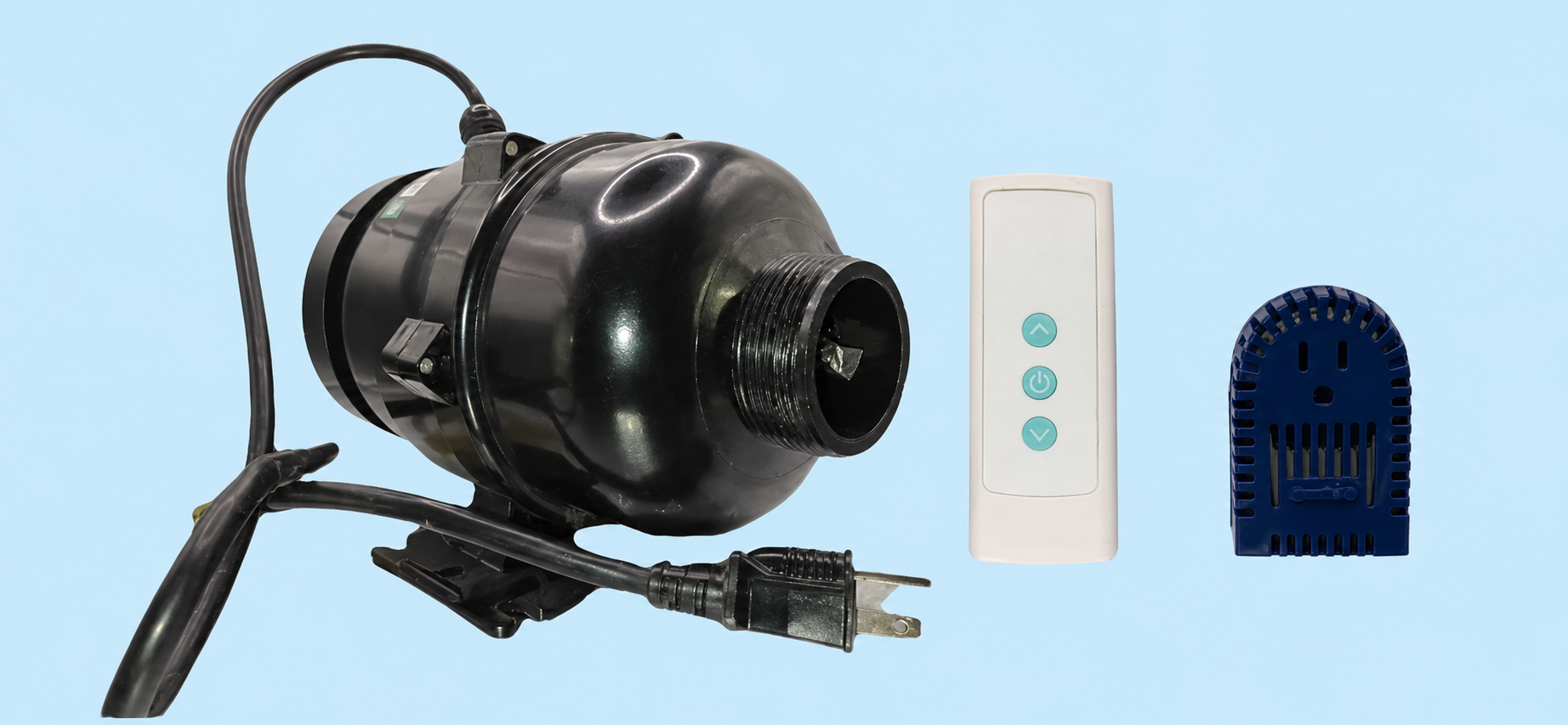

What’s Included
- 120V, 7.2-amp, 700-watt heated air blower
- Separate wireless electronic control box
- Waterproof wireless floating remote
- Required connecting components
- Installation instructions
- One-year limited warranty
Not included: This system does not include a replacement tub-mounted keypad, pneumatic air button or air-switch tubing.
Specifications
| Replacement application | Compatible Kohler K-1039685 / 1039685 air-bath systems |
| Electrical rating | 120V / 60Hz, 7.2 amps |
| Blower | 700-watt heated air blower |
| User control | Waterproof wireless remote |
| Speed operation | Three-speed or variable-speed configuration |
| Wave and Pulse modes | Not included |
| Operating cycle | Automatic timed operation |
| Drying cycle | Automatic purge cycle |
| Warranty | One-year limited warranty |
The system operates on 120V/60Hz. Some original equipment labels may show 115V instead of 120V. Always verify the original equipment label and electrical configuration before ordering.
Why Choose the Wireless System?
Some original Kohler keypads are permanently bonded to the bathtub or difficult to remove without damaging the surrounding acrylic. This system allows the original keypad to remain physically in place while the new blower is operated with a waterproof wireless remote.
The original Kohler keypad and control electronics are not electrically reused. The replacement blower, wireless control box and remote operate together as a complete matched system.
This is also a good option for customers who prefer remote operation and do not require Wave or Pulse massage modes.
Want to compare all three options? Read our Kohler 1039685 and 1036210 Blower Replacement Guide.
Confirm Compatibility Before Ordering
Before ordering, confirm:
- The original blower system operates on 115/120V and 60Hz
- The original blower and control-system part numbers
- The air-line connection and available equipment space
- The condition and location of the original keypad
- The electrical circuit, grounding and GFCI protection
If you are uncertain, text clear pictures of the original blower label, keypad, control box and installation area to (951) 897-1878. Whirly Bros can help verify compatibility before you order.
Frequently Asked Questions
Does this replace the original Kohler 1039685 blower?
This system is designed as a complete aftermarket retrofit for compatible 120V/60Hz Kohler 1039685 air-bath installations. Final compatibility depends on the original voltage, air connection, control configuration and available mounting space.
Can I reuse the original Kohler keypad?
No. The original keypad is not electrically compatible with the replacement control system. It may remain physically in place, but the new blower is operated using the included wireless remote.
Does the wireless remote provide variable-speed control?
The control system can be configured for three-speed or variable-speed operation. The remote allows the user to turn the blower on or off and adjust the airflow.
Does this system have Wave and Pulse modes?
No. This wireless system does not provide programmed Wave or Pulse modes. Choose one of our keypad-controlled systems if those massage modes are required.
Does the blower heater warm the bathwater?
No. The integrated heater warms the moving air to reduce the initial cool-air sensation. It does not heat or maintain the temperature of the bathwater.
Are an air button and air tubing included?
No. This system is controlled electronically by the waterproof wireless remote. A pneumatic air button and air-switch tubing are not included.
Why does the blower start again after the bath is turned off?
This is the automatic drying or purge cycle. It helps remove residual moisture from the air lines after the bath has been used.
Is this an original Kohler product?
No. This is a complete aftermarket retrofit system for compatible Kohler applications. It is not an original Kohler service part.
Installation Notice
Disconnect electrical power before installation. Verify the voltage, circuit capacity, grounding, GFCI protection, air connection and local electrical requirements. Use a qualified installer or electrician whenever electrical work or code compliance is uncertain.
Trademark and compatibility notice: KOHLER® and BubbleMassage® are trademarks of Kohler Co. Manufacturer names and part numbers are used solely to identify the intended application of this aftermarket replacement system. Whirly Bros is not affiliated with, sponsored by or endorsed by Kohler Co.
