NR1-C 001F88C Gemini Plus II 1/2 HP Whirlpool Pump Replacement
Share
This replacement is configured for select whirlpool bathtubs originally equipped with the NR1-C Gemini Plus II pump, box part number 001F88C. Verify the complete number on your original pump label before ordering.

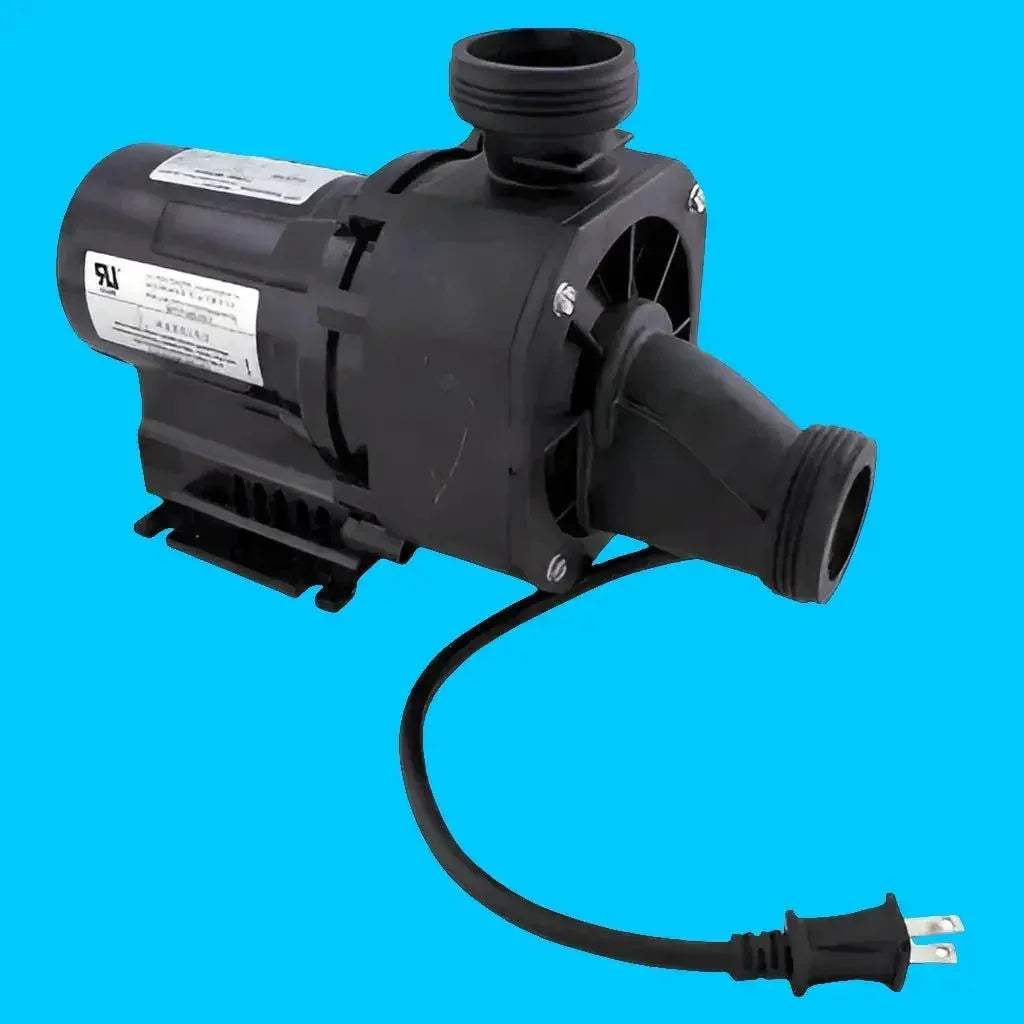

NR1-C 001F88C Gemini Plus II Whirlpool Pump Replacement
Replace a discontinued NR1-C Gemini Plus II 1/2 HP whirlpool bathtub pump with a modern 120-volt replacement solution. The original NR1-C was a cord-connected bath pump without a built-in air switch and was identified by box part number 001F88C.
The replacement pump provides dependable 8.5-amp performance while retaining the familiar Gemini-style plumbing arrangement used in many older whirlpool bathtubs. It is intended for applications where the pump is activated by a separate bathtub control system rather than an air switch built into the pump.
The original box part number is 001F88C. Do not confuse it with 0001F88C. These numbers should not be treated as interchangeable unless the original pump label and installation specifications have been verified.
Original NR1-C Identification
| Original model | NR1-C |
|---|---|
| Original box part number | 001F88C |
| Original horsepower | 1/2 HP |
| Voltage | 120V AC |
| Frequency | 50/60 Hz |
| Built-in air switch | No |
| Electrical cord/plug | Yes |
| Original amperage | Verify the original motor label |
| Original bulk part number | Not confirmed |
Replacement Pump Specifications
| Replacement model | PB7500XCS |
|---|---|
| Voltage | 120V AC |
| Current draw | 8.5 amps |
| Application | Whirlpool bathtub circulation |
The replacement motor may have a different stated horsepower or amperage than the original NR1-C. Compatibility is determined by the complete electrical, control and plumbing configuration—not horsepower alone.
Designed for Cord-Controlled Installations
The original NR1-C configuration did not contain a built-in pneumatic air switch. Its power cord connected the pump to a separate control device, relay or switched receptacle installed with the bathtub. Confirm that your existing system controls power externally before ordering.
- Replacement solution for the discontinued NR1-C pump
- Targets original box part number 001F88C
- 120-volt electrical configuration
- 8.5-amp replacement pump
- Designed for externally controlled, cord-connected installations
- Compatibility assistance available before purchase
Before Ordering
- Confirm that the original label shows NR1-C or 001F88C.
- Verify that the original pump has a cord and no built-in air switch.
- Check that the bathtub operates the pump through a separate control or switched receptacle.
- Compare the suction inlet, discharge outlet and available mounting space.
- Confirm the original voltage from the motor label.
Text photographs of the original pump label, power connection and plumbing arrangement to (951) 897-1878. Whirly Bros will help confirm the correct replacement before you place your order.
Installation Notes
- Disconnect electrical power before servicing the bathtub.
- Do not operate the pump unless the bathtub is filled above the highest jet.
- Inspect union gaskets and plumbing connections during installation.
- Confirm that the replacement is properly controlled before applying power.
- Electrical or plumbing modifications should be performed by a qualified professional.
