This upgraded Balboa control has been verified by Whirly Bros as a replacement for multiple discontinued NuWhirl AST-201 and CAST-201 electronic controls when programmed to the correct operating configuration.
NuWhirl AST-201 and CAST-201 Variable-Speed Control Replacement
Restore operation to your air bath, whirlpool tub, blower, or bath pump with this upgraded Balboa replacement control. It is designed to replace the discontinued NuWhirl AST-201-01-01-03D and numerous related AST-201 and CAST-201 control variations.
This control is especially useful when the original NuWhirl control has gone completely dead or has suffered a failed triac that leaves the connected blower or pump stuck in the ON position.
Unlike many original controls, the updated Balboa control includes an LED status indicator, supports four selectable operating configurations, and can be paired with an optional wireless remote control.
Common Signs the Original Control Has Failed
Control Is Completely Dead
A failed AST-201 or CAST-201 control may become completely unresponsive. Common symptoms include:
- The blower or pump will not start.
- The air button no longer activates the system.
- The control box does not respond when power is supplied.
- The connected equipment receives no switched power from the control.
Blower or Pump Is Stuck in the ON Position
Another common failure is a damaged or blown triac. The triac is an electronic component that switches power to the blower or pump. When it fails in the closed position, the connected motor may continue running without responding to the air button.
Typical symptoms of a failed triac include:
- The blower or pump starts as soon as electrical power is applied.
- The motor remains running continuously.
- Pressing the air button does not turn the system off.
- The motor only stops after the control is unplugged or electrical power is shut off.
If your blower or pump is stuck running, disconnect power to the control box or turn off the appropriate circuit breaker. Do not allow the equipment to continue operating unattended. Electrical troubleshooting and installation should be performed by a qualified technician when required.
Why Choose the Updated Balboa Control?
This is more than a basic replacement for an obsolete control. The updated Balboa design adds useful diagnostic and programming features that make operation and future troubleshooting easier.
- LED power indicator: Confirms that the control is receiving electrical power.
- Configuration indicator: The LED helps identify the currently selected operating mode.
- Four operating configurations: One control can be programmed for multiple pump and blower applications.
- Field configurable: The configuration can be changed without replacing the control box.
- Wireless remote compatible: An optional wireless remote can be paired with the control.
- Current replacement solution: Replaces numerous discontinued NuWhirl TouchStone controls.

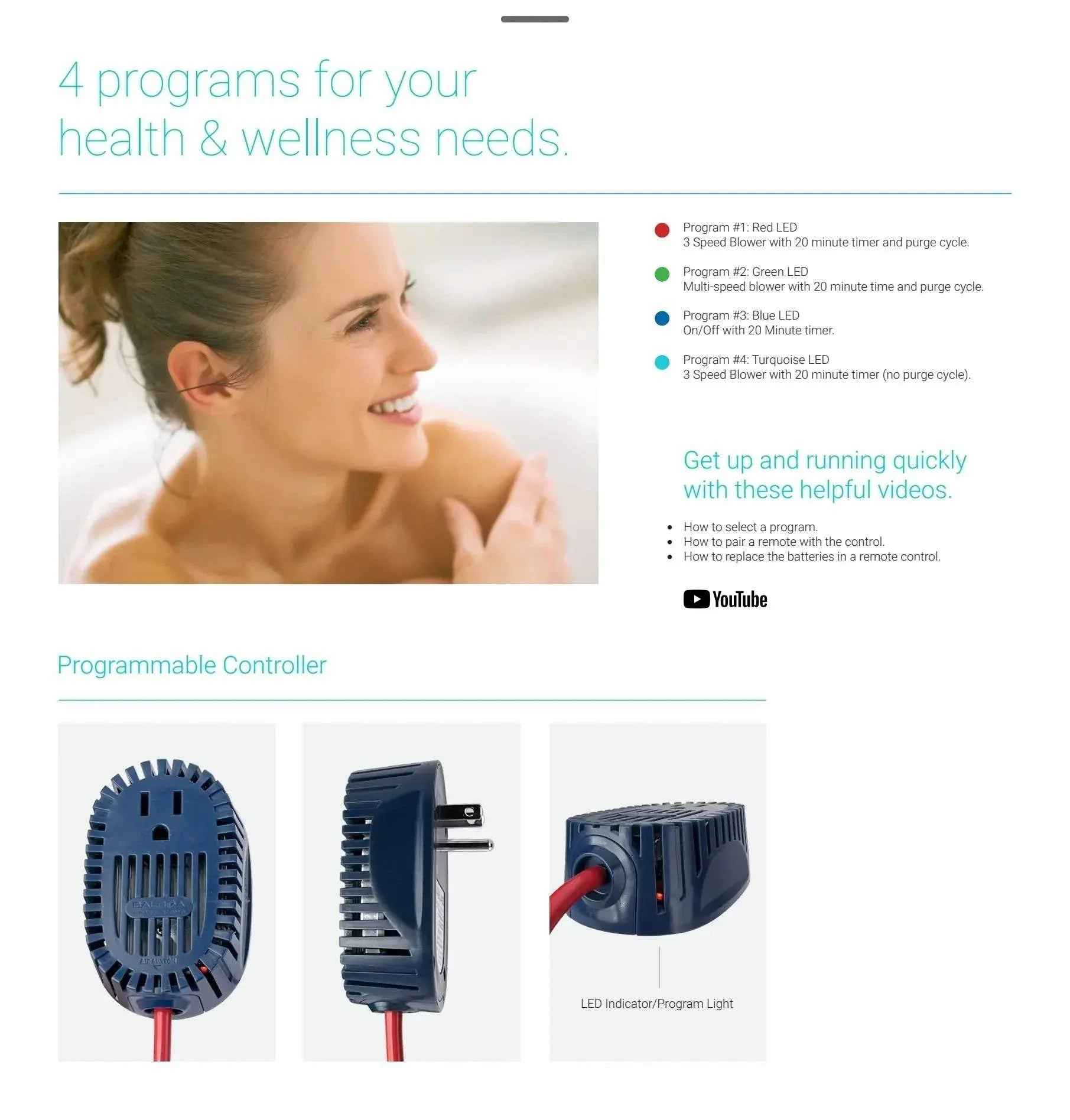

Four Selectable Operating Configurations
This Balboa control supports four different operating configurations. The correct configuration depends on the type of blower or pump being controlled and the operating sequence originally used by the bathtub manufacturer.
The configuration can be changed at any time by following the programming procedure shown in the video below.
If you are unsure which configuration is required, contact Whirly Bros with the complete part number from your original control label before changing the settings.
Optional Wireless Remote Control
The control can also be paired with a compatible wireless remote. This provides another way to operate the system and can be especially useful when the original air button is difficult to reach, damaged, or no longer desirable.
The wireless remote can be added during installation or paired later as an upgrade.

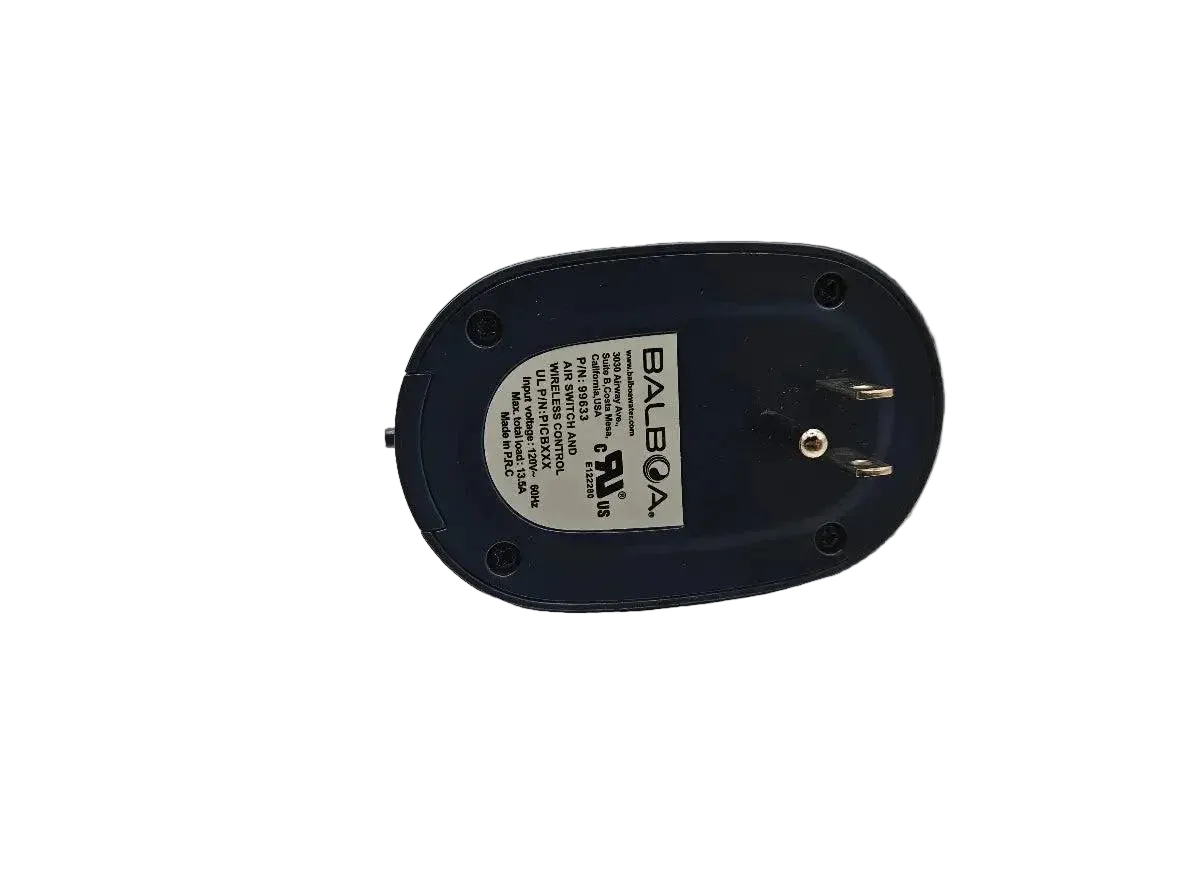

Compatible NuWhirl AST-201 Controls
This Balboa control can replace the following AST-201 controls and related letter-suffix variations when programmed to the proper configuration:
- AST-201-01-01-02
- AST-201-01-01-03
- AST-201-01-01-03A
- AST-201-01-01-03B
- AST-201-01-01-03C
- AST-201-01-01-03D
- AST-201-01-01-04
- AST-201-01-01-04A
- AST-201-01-01-04B
- AST-201-01-01-04C
- AST-201-01-01-04D

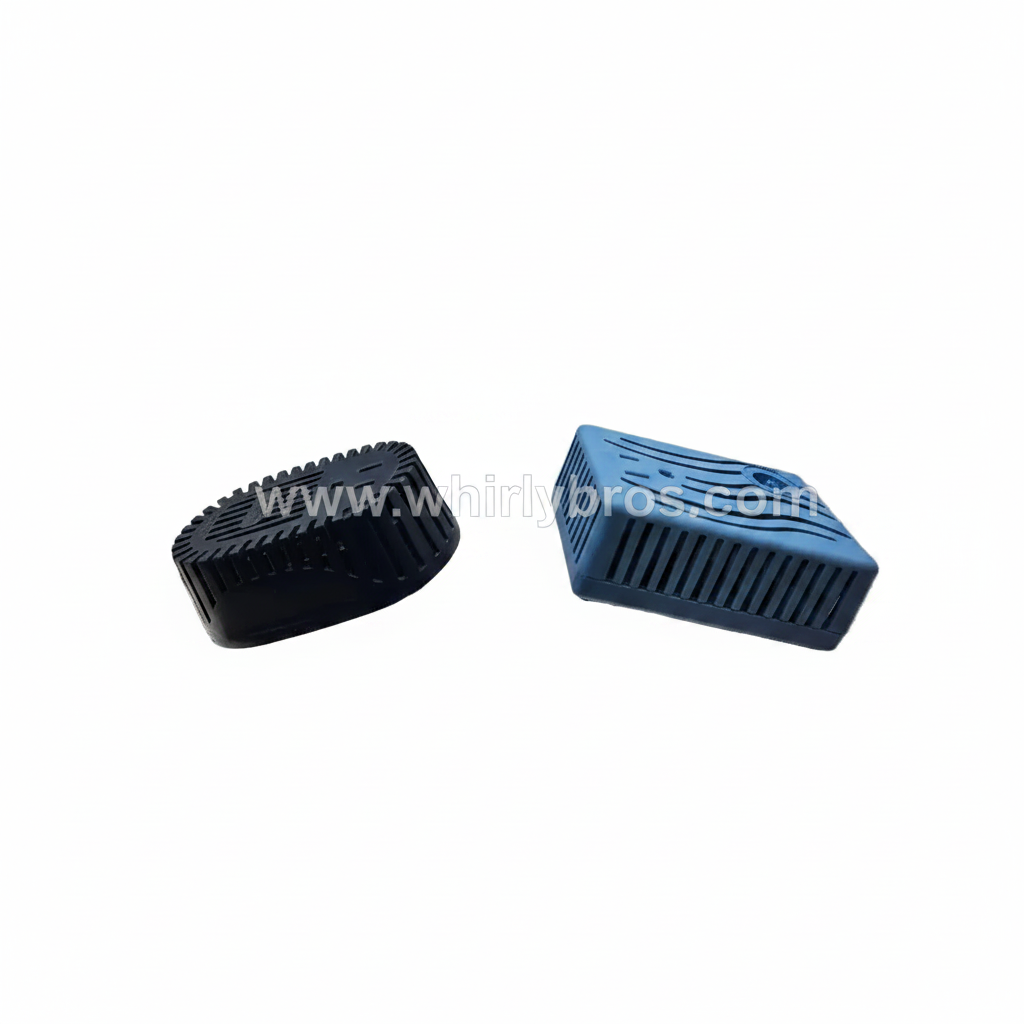

Compatible NuWhirl CAST-201 Controls
This control can also replace the following CAST-201 controls and related letter-suffix variations when correctly configured:
- CAST-201-01-01-02
- CAST-201-01-01-03
- CAST-201-01-01-03A
- CAST-201-01-01-03B
- CAST-201-01-01-03C
- CAST-201-01-01-03D
- CAST-201-01-01-04
- CAST-201-01-01-04A
- CAST-201-01-01-04B
- CAST-201-01-01-04C
- CAST-201-01-01-04D
NuWhirl controls may have an AST or CAST prefix while sharing the same remaining model sequence. This replacement covers both prefix styles and the applicable A, B, C, and D configuration variations listed above.
Compatibility Summary
| Product Type | Electronic bath control replacement |
|---|---|
| Primary Replacement | NuWhirl AST-201-01-01-03D |
| Control Families | AST-201 and CAST-201 |
| Applications | Compatible bath blowers and pumps |
| Operating Modes | Four selectable configurations |
| Indicator | LED power and configuration indicator |
| Remote Capability | Compatible with an optional wireless remote |
Common Bath Manufacturer Applications
AST-201 and CAST-201 controls may be found in systems produced for or used by manufacturers such as:
- NuWhirl Systems
- Allied
- Hydro Systems
- Jason International
- Mansfield
- Swirlway
- SW Corp
- Other bath manufacturers that used NuWhirl TouchStone controls
Manufacturer names are provided only to help identify the original equipment application. Compatibility should be confirmed using the original control-box part number rather than the bathtub brand alone.
Installation and Configuration Notes
- Disconnect electrical power before removing or installing the control.
- Compare the complete original control part number before ordering.
- Verify that the connected blower or pump is in safe operating condition.
- Select the correct operating configuration before returning the system to service.
- Do not assume the existing configuration is correct if another replacement control was previously installed.
- Installation should comply with applicable electrical and local building requirements.
Frequently Asked Questions
Does this replace the NuWhirl AST-201-01-01-03D?
Yes. This Balboa control is offered as an upgraded replacement for the discontinued AST-201-01-01-03D when programmed to the proper operating configuration.
Does it replace AST-201-01-01-04A, 04B, 04C, and 04D?
Yes. The AST-201-01-01-04A, AST-201-01-01-04B, AST-201-01-01-04C, and AST-201-01-01-04D variations are included in the compatible replacement family.
Does it also replace CAST-201 controls?
Yes. It can replace the listed CAST-201 controls, including the A, B, C, and D suffix variations, when configured correctly.
What does the C in CAST mean for compatibility?
Original labels may use either the AST or CAST prefix. This replacement supports the applicable AST-201 and CAST-201 versions listed on this page.
Will this fix a blower or pump that will not turn off?
It may resolve the problem when the original control has a failed triac that is continuously sending power to the motor. The blower or pump itself should also be inspected to confirm there are no additional problems.
Will this fix a completely dead system?
It can restore operation when the original electronic control has failed. Before replacing the control, verify that the outlet or circuit has power and that the connected motor is not damaged.
Can the operating configuration be changed later?
Yes. The control supports four operating configurations, and the configuration can be changed by following the correct programming procedure.
What is the LED indicator used for?
The LED confirms that the control is powered and helps identify which operating configuration is currently selected.
Can a wireless remote be added later?
Yes. A compatible wireless remote can be paired with the control as an optional upgrade.
How do I know which configuration to use?
Use the complete original NuWhirl control part number and the type of connected equipment to identify the correct configuration. Contact Whirly Bros before installation if you are uncertain.
Send Whirly Bros a clear photo of the original control-box label and the connected blower or pump. We will help confirm whether this replacement is appropriate and identify the correct operating configuration.
