NuWhirl DC2-200-60 Safe Step Walk-In Tub Cable Drain Assembly

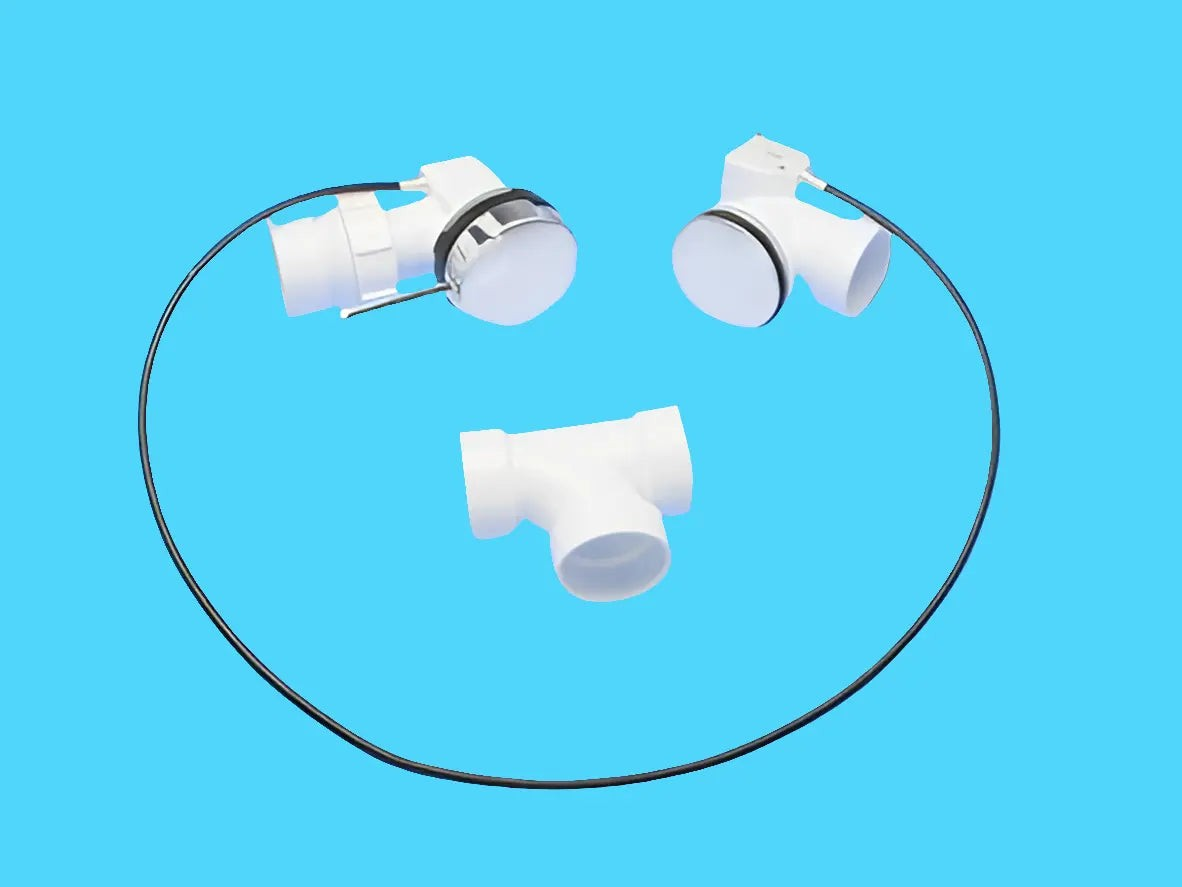

The NuWhirl DC2-200-60 is a complete cable-operated drain and overflow assembly with a 60-inch mechanical actuator cable and chrome trim. It is used in select Safe Step and other walk-in tubs equipped with the matching DC2-200-60 drain configuration.

Turning the accessible rotary overflow control mechanically opens or closes the bathtub drain. This replacement restores dependable operation when the original cable binds, breaks, or no longer moves the drain stopper correctly.

DC2-200-60 Key Specifications

Compatible Walk-In Tub Applications

The DC2-200-60 is used in select:

• Safe Step walk-in tubs requiring a 60-inch actuator cable
• American Standard or Safety Tubs applications originally equipped with the same assembly
• Other walk-in tubs using a matching DC2-200-60 drain configuration

Brand name alone does not confirm compatibility. Walk-in tub manufacturers used different drain assemblies across models and production years. Match the following specifications to your existing drain:

• Part number DC2-200-60
• 60-inch mechanical actuator cable
• 1-1/2-inch plumbing connection
• 2-inch drain shoe
• 2-1/2-inch drain mounting hole
• 2-1/2-inch overflow mounting hole
• Chrome trim and matching rotary overflow control

What Does “60 Inch” Mean?

The 60-inch specification describes the mechanical cable connecting the overflow control to the drain mechanism. It does not describe:

• The length or width of the bathtub
• The length of the drain pipe
• The distance between the drain and overflow openings
• The overall assembled plumbing height

The final -60 in DC2-200-60 identifies the chrome trim finish. In this model, both the cable length and finish code happen to use the number 60, but they describe different product characteristics.

Common Reasons for Replacement

• Drain control is difficult to turn
• Cable sticks, binds, or has broken internally
• Drain stopper will not remain open or closed
• Overflow control turns without moving the stopper
• Drain or overflow components are leaking
• Chrome trim or plated components are damaged or corroded

What Is Included?

This listing includes the complete DC2-200-60 cable drain and overflow assembly shown in the product photos. Compare the supplied components with your existing assembly before installation.

PVC drain pipe, plumbing sealant, and additional installation materials are not included unless expressly shown or stated.

DC2-200-60 vs. DC2-100-60

Do not select a cable drain based only on cable length. The model number, drain shoe, mounting holes, trim, and physical configuration must also match.

Installation and Measurement Notes

• Compare the new assembly with the original before removing existing plumbing.
• Confirm that the original actuator cable measures 60 inches.
• Route the cable smoothly without sharp bends, kinks, or excessive tension.
• Measure the tub openings—not only the visible trim pieces.
• Confirm the drain-shoe size separately from the drain mounting-hole size.
• Do not overtighten the drain or overflow hardware.
• Use appropriate plumbing sealant and replace worn seals or gaskets.
• Leak-test the drain shoe, overflow, and plumbing connections after installation.
• Professional installation is recommended when access behind or beneath the tub is limited.

Frequently Asked Questions

What does the 60-inch measurement describe?

It describes the length of the mechanical actuator cable connecting the overflow control to the drain mechanism. It does not describe the bathtub size or drain-pipe length.

What does the final “-60” mean in DC2-200-60?

The final -60 identifies the chrome trim finish. The 60-inch cable length is a separate product specification.

What is the difference between DC2-200-60 and DC2-100-60?

The DC2-200-60 uses a 60-inch cable. The DC2-100-60 uses a 45-inch cable. Compare the entire assembly and all measurements before ordering.

Will this fit every Safe Step walk-in tub?

No. Safe Step used different drain systems depending on the bathtub model and production date. Confirm the exact model, cable length, drain shoe, mounting holes, plumbing connection, and physical configuration.

What is the difference between the drain shoe and mounting hole?

The drain shoe is the plumbing component beneath the tub. The mounting hole is the opening through the bathtub shell. This assembly uses a 2-inch drain shoe with a 2-1/2-inch drain mounting hole.

Can I substitute another 60-inch cable drain?

Not necessarily. Cable length alone does not establish compatibility. The model number, mounting holes, drain shoe, plumbing connection, and control configuration must also match.
