DC2-100-60 Safe Step Cable Drain Assembly | 45" Chrome
Share
The 45-inch measurement is the cable length—not the bathtub size or drain-pipe length. Confirm part number DC2-100-60, the 45-inch cable, drain-shoe configuration, and mounting-hole measurements before ordering.
NuWhirl DC2-100-60 Safe Step Walk-In Tub Cable Drain Assembly
The NuWhirl DC2-100-60 is a complete cable-operated drain and overflow assembly with a 45-inch actuator cable and chrome trim. It is designed for select Safe Step and American Standard walk-in tubs equipped with the matching DC2-100-60 drain system.
Turning the accessible rotary overflow control mechanically opens or closes the bathtub drain. This replacement restores dependable operation when the original cable binds, breaks, or no longer moves the drain stopper properly.
DC2-100-60 Key Specifications
| Manufacturer | NuWhirl Systems |
|---|---|
| Part Number | DC2-100-60 |
| Cable Length | 45 inches |
| Drain Plumbing | 1-1/2-inch connection |
| Drain Shoe | 2 inches |
| Drain Mounting Hole | 2-1/2 inches |
| Overflow Mounting Hole | 2-1/2 inches |
| Trim Finish | Chrome — finish code 60 |
| Material | Chrome-plated copper |
| Operation | Mechanical cable-operated drain |
| Application | Walk-in tub drain and safety overflow |
Compatible Walk-In Tub Applications
The DC2-100-60 has been used in select:
- Safe Step walk-in tubs manufactured around 2017 and later
- American Standard walk-in tubs using the same DC2-100-60 assembly
- Other walk-in tubs originally equipped with a matching 45-inch DC2 cable drain
Brand name and production year alone do not guarantee fitment. Walk-in tub manufacturers used different drain assemblies across models and production periods. Confirm the following before ordering:
- Part number DC2-100-60
- 45-inch actuator cable
- 1-1/2-inch plumbing connection
- 2-inch drain shoe
- 2-1/2-inch drain mounting hole
- 2-1/2-inch overflow mounting hole
- Chrome trim and matching rotary overflow control
Do Not Confuse Cable Length With Tub Size
The 45-inch specification describes the mechanical cable connecting the overflow control to the drain mechanism. It does not describe:
- The length or width of the bathtub
- The length of the drain pipe
- The distance between the drain and overflow openings
- The overall assembled plumbing height
Measure and compare the original cable routing before selecting a replacement.
Common Reasons for Replacement
- Drain control is difficult to turn
- Cable sticks, binds, or has broken internally
- Drain stopper will not remain open or closed
- Overflow control turns without moving the stopper
- Drain or overflow components are leaking
- Chrome trim or plated components are damaged or corroded
What Is Included?

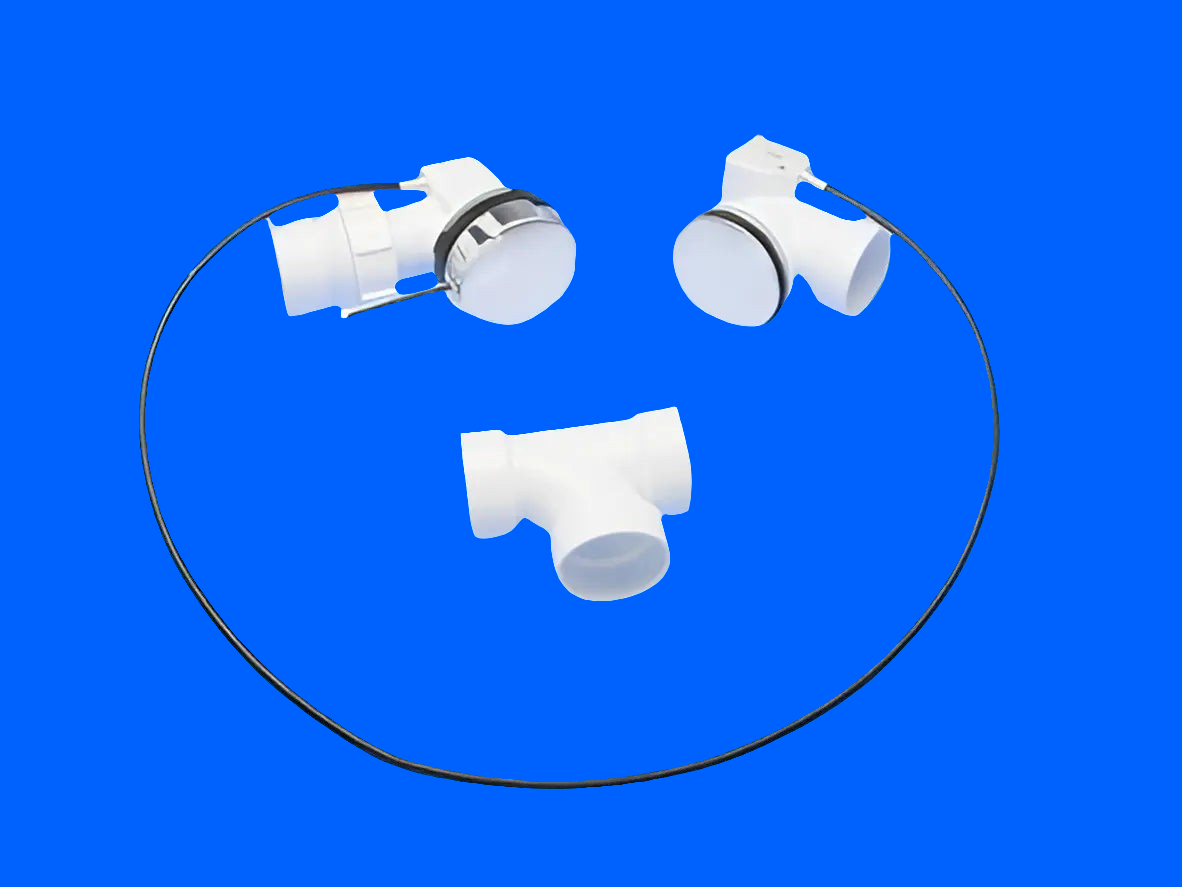

This listing includes the complete DC2-100-60 cable drain and overflow assembly shown in the product photos. Compare the supplied components with your existing assembly before installation.
PVC drain pipe, plumbing sealant, and additional installation materials are not included unless expressly shown or stated.
Compare Related Cable Drain Assemblies
| Model | Cable Length | Important Difference |
|---|---|---|
| DC2-100-60 | 45 inches | Chrome DC2 assembly offered on this page |
| DC2-200-60 | 60 inches | Longer cable and different DC2 configuration |
| DC500-60 | 45 inches | Different DC500 drain design; not interchangeable by cable length alone |
Do not select a drain assembly based only on cable length. The model number, drain shoe, mounting holes, trim, and overall configuration must also match.
Installation Notes
- Compare the new assembly with the original before removing existing plumbing.
- Route the 45-inch cable smoothly without sharp bends, kinks, or excessive tension.
- Measure the tub openings—not only the visible trim pieces.
- Confirm the drain-shoe size separately from the tub mounting-hole size.
- Do not overtighten the drain or overflow hardware.
- Use appropriate plumbing sealant and replace worn seals or gaskets.
- Leak-test the drain shoe, overflow, and plumbing connections after installation.
- Professional installation is recommended when access behind or beneath the tub is limited.
Send Whirly Bros clear photos of the overflow control, drain shoe, stopper, cable, plumbing connections, and any visible part numbers. Our walk-in tub parts specialists can help compare your existing assembly before you order.
Contact Whirly Bros for part identification
Frequently Asked Questions
What does the 45-inch measurement describe?
It describes the length of the mechanical actuator cable connecting the overflow control to the drain mechanism. It does not describe the bathtub size or drain-pipe length.
What does “-60” mean in DC2-100-60?
The -60 suffix identifies the chrome trim finish. It does not describe the cable length.
Will this fit every Safe Step walk-in tub?
No. Safe Step used different drain systems depending on the bathtub model and production date. Confirm the part number, 45-inch cable, drain shoe, mounting holes, plumbing connection, and physical configuration before ordering.
What is the difference between the drain shoe and mounting hole?
The drain shoe is the plumbing component beneath the tub. The mounting hole is the opening through the bathtub shell. This assembly uses a 2-inch drain shoe with a 2-1/2-inch drain mounting hole.
Can I use another 45-inch cable drain?
Not necessarily. Cable length alone does not establish compatibility. A DC500 45-inch cable drain, for example, uses a different drain configuration and should not be substituted without comparing every measurement and component.
