73533-AA Kohler 3-Speed Whirlpool Pump Replacement System with Wireless Remote
Share
This complete replacement system has been verified as a modern retrofit option for the discontinued Kohler® 73533-AA whirlpool pump system. It replaces the obsolete pump and controls with a new 120V pump, control box, and waterproof wireless remote.
73533-AA Kohler Whirlpool Pump Replacement with Wireless Remote
Restore the whirlpool action in your Kohler bath without searching for obsolete original pump and control components. This complete replacement package provides a practical modern solution for the discontinued Kohler 73533-AA whirlpool pump system.
This version uses a convenient waterproof wireless remote with three selectable pump speeds. It is an excellent choice when you want to avoid installing a new tub deck-mounted keypad or when access to the original control location is limited.
This system provides High, Medium, and Low pump speeds. It does not include the tub deck-mounted variable-speed keypad with Wave and Pulse modes.
What This Replacement System Includes
- 1 × 120V, 8.5A whirlpool bath pump
- 1 × Balboa Water Group 120V control box
- 1 × waterproof floating wireless remote
- Remote batteries included
- 1 × pump union to assist with installation

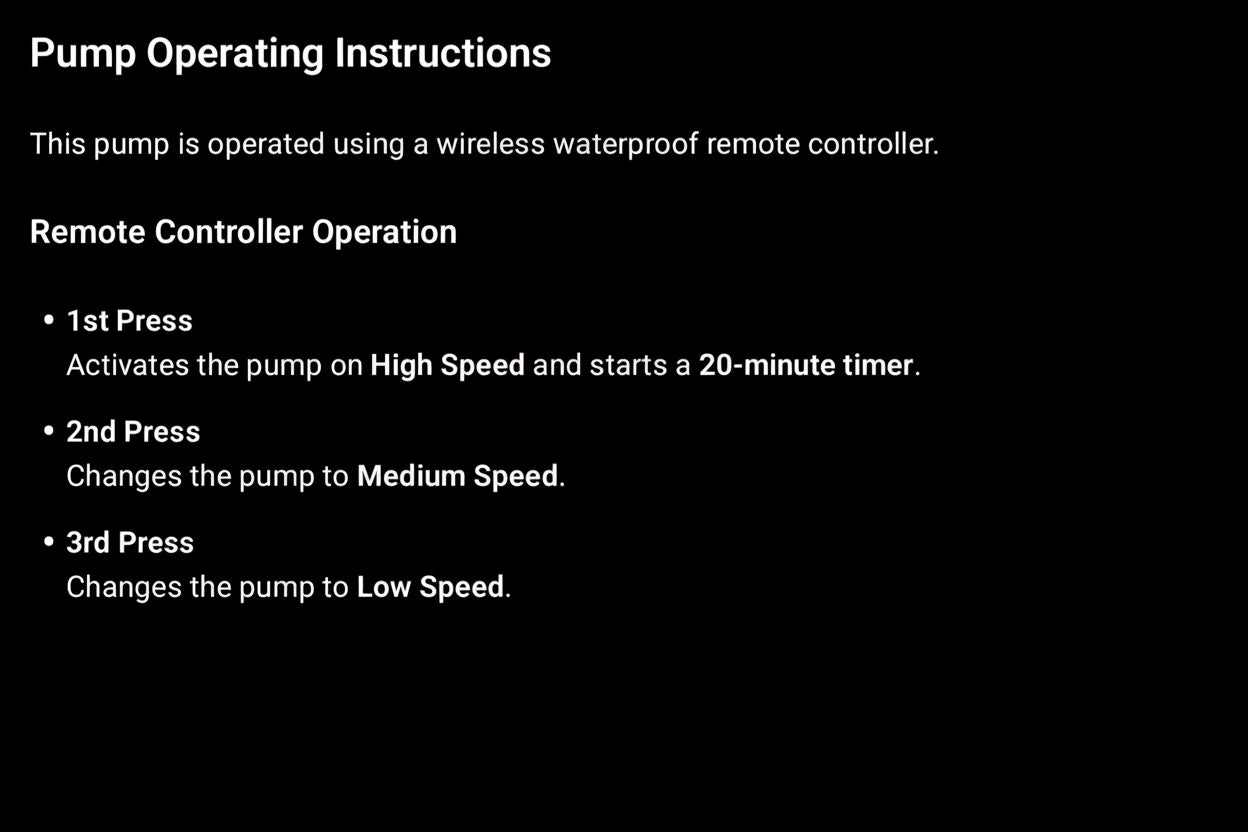

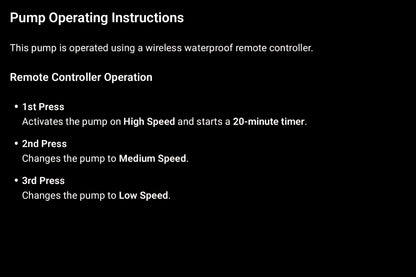

Wireless Remote Functions
- High: Maximum whirlpool jet pressure
- Medium: Balanced everyday hydrotherapy
- Low: Gentle, relaxing water movement
- On/Off: Start or stop the whirlpool system remotely
- 30-Minute Timer: Convenient timed operating cycle
Why Choose the Wireless Remote System?
- Provides three clearly defined pump speeds
- No new tub deck-mounted electronic keypad is required
- Convenient control from inside or beside the bath
- Helpful when the original keypad location is damaged or inaccessible
- Modern replacement for obsolete pump and control components
- Compact components fit beneath many existing whirlpool bath installations
- Designed to minimize plumbing changes in compatible applications
Compatibility
This system is intended as a complete replacement solution for:
- Kohler 73533-AA whirlpool pump systems
- K-73533 identification references
- Selected legacy Kohler whirlpool baths using an obsolete pump and electronic control configuration
- Selected older ITT Marlow brush-motor pump installations when dimensions, plumbing, voltage, and system configuration are verified
Compatibility should be confirmed before ordering. Older whirlpool baths may have been produced with different pump, plumbing, electrical, or control configurations. Send Whirly Bros clear photos of the original pump label, plumbing connections, control components, and available installation space when assistance is needed.
Technical Specifications
| Specification | Details |
|---|---|
| Replacement reference | Kohler 73533-AA / K-73533 |
| Operating voltage | 120V |
| Pump amperage | 8.5A |
| Speed settings | High, Medium, and Low |
| Control type | Waterproof wireless remote |
| Timer function | 30-minute operating timer |
| Control box | Balboa Water Group, 120V |
| Installation type | Complete retrofit system |
Installation Considerations
- The replacement pump may have different physical dimensions than the original pump.
- A new stable pump base or mounting platform may be required.
- Existing plumbing can often be reused, but minor alignment or plumbing adjustments may be necessary.
- This is a 120V system. Do not connect it directly to a 240V supply.
- The electrical supply must match the system requirements and be GFCI protected.
- Installation should be completed by a qualified technician when electrical or plumbing modifications are required.
Choose this system when you prefer three-speed wireless control and want to avoid installing a new tub deck keypad. A separate variable-speed keypad system is available for customers who want tub-mounted controls with Wave and Pulse massage modes.
Frequently Asked Questions
Is this a variable-speed pump system?
No. This wireless remote version provides three selectable operating speeds: High, Medium, and Low. Whirly Bros also offers a separate keypad-controlled system with variable-speed, Wave, and Pulse functions.
Does this include a tub-mounted keypad?
No. Operation is controlled through the included waterproof wireless remote, so a new electronic keypad does not have to be installed on the tub deck.
Will it replace the original Kohler 73533-AA system?
It is offered as a complete retrofit solution for compatible Kohler 73533-AA installations. Because older baths may have different configurations, the original pump label, voltage, plumbing orientation, and installation space should be verified before ordering.
Can the existing plumbing be reused?
Many installations can reuse most of the existing plumbing. However, differences in pump dimensions or connection alignment may require minor plumbing adjustments.
Can this be connected to 240V?
No. The included pump and control system operate on 120V. Any existing 240V installation must be properly converted by a qualified electrician before this system is connected.
What is included with the remote?
The waterproof remote includes High, Medium, Low, On/Off, and a 30-minute timer function. Batteries are included.
Why Purchase From Whirly Bros?
- Specialists in obsolete and hard-to-find whirlpool bath replacement systems
- Compatibility assistance before ordering
- Real-world pump and control-system experience
- Free U.S. shipping on orders over $100
- Most in-stock orders ship the same business day
- Phone and text support at (951) 897-1878
Kohler® is a registered trademark of Kohler Co. Kohler names and part numbers are referenced solely to identify compatibility. This aftermarket replacement system is not manufactured, sponsored, authorized, or endorsed by Kohler Co. Unless expressly stated otherwise, original Kohler components are not included.
