73533-AA Kohler 3-Speed Whirlpool Pump Replacement System with Wireless Remote
Share
Complete 120V retrofit for compatible Kohler 73533-AA and K-73533 whirlpool pump systems. This kit replaces the obsolete pump and proprietary controls with a new pump, Balboa control box, and waterproof wireless remote.
It provides High, Medium, and Low speeds with On/Off control and a 30-minute timer. It does not include a deck-mounted keypad, Wave mode, or Pulse mode.

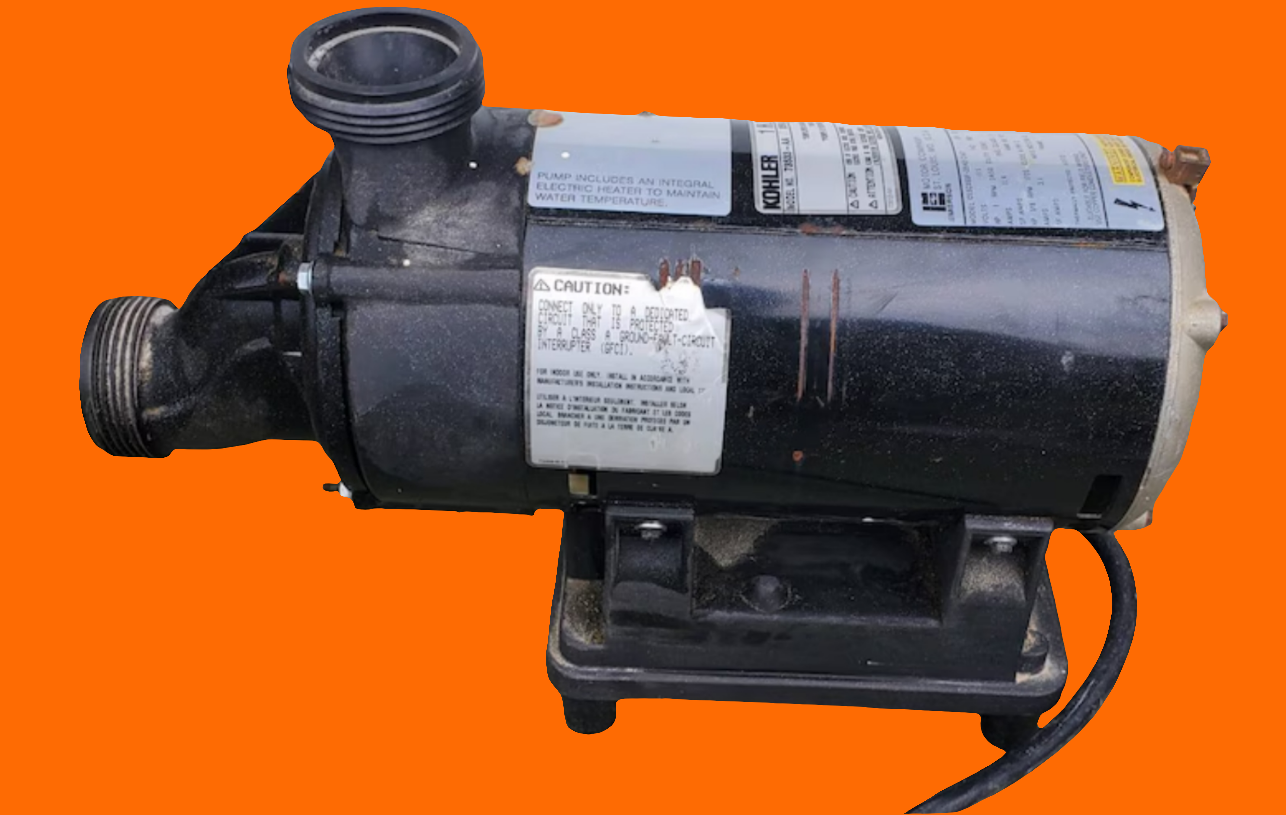

The original Kohler 73533-AA pump, electronic keypad, control board, and Telco-style communication cable are obsolete. These original components cannot be mixed with this modern control system, so the pump and controls are replaced together.
Quick Facts
| Replacement For | Kohler 73533-AA / K-73533 |
|---|---|
| Electrical | 120V, 8.5A |
| Speed Settings | High, Medium, and Low |
| Control | Waterproof floating wireless remote |
| Timer | 30-minute operating timer |
| Control Box | Balboa Water Group, 120V |
| Installation | Complete pump-and-control retrofit |

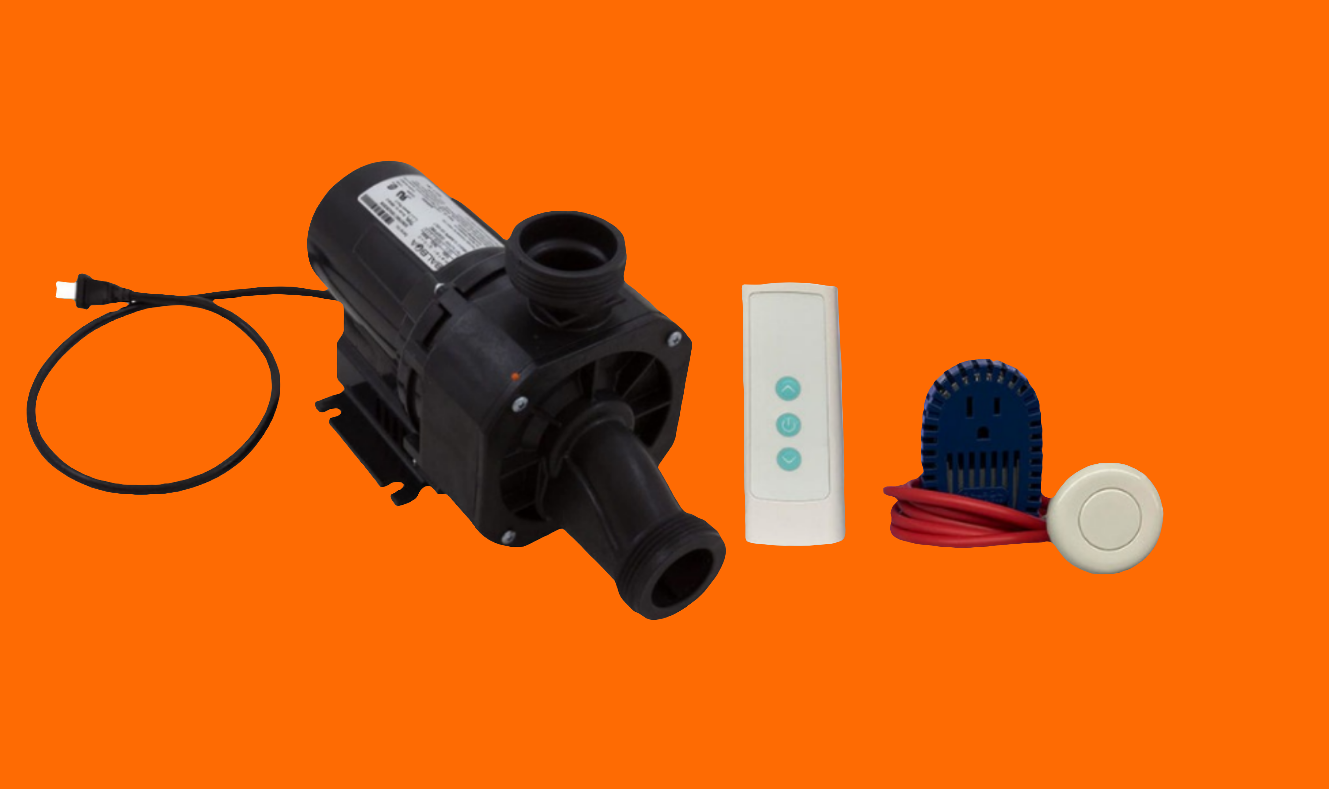

What’s Included
- 1 × 120V, 8.5A whirlpool bath pump
- 1 × Balboa Water Group 120V control box
- 1 × waterproof floating wireless remote
- Remote batteries
- 1 × pump union to assist with installation
Why Choose the Wireless System?
- No new tub deck-mounted electronic keypad is required
- Control the whirlpool from inside or beside the bathtub
- Ideal when the original keypad is damaged or inaccessible
- Three clearly defined pump speeds
- Automatic 30-minute operating timer
Want a tub-mounted keypad with fully variable control, Wave, and Pulse modes? View the separate 73533-AA variable-speed keypad system.
Compatibility and Installation
- Verify the original label shows Kohler 73533-AA or K-73533.
- The replacement pump may have different dimensions from the original.
- A new stable pump base or mounting platform may be required.
- Most existing plumbing can often be reused, but minor alignment adjustments may be necessary.
- This is a 120V system. Do not connect it directly to a 240V supply.
- The electrical supply must be properly GFCI protected.
- Use a qualified technician when electrical or plumbing modifications are required.
Pump union tip: Start the union square and tighten it by hand. The O-ring creates the seal. Do not use Teflon tape or pipe compound on the union threads.
This kit may also fit selected older ITT Marlow brush-motor systems, but only after Whirly Bros verifies the pump dimensions, plumbing, voltage, and control configuration.
Important Heater Information
The original Kohler 73533-AA pump assembly included a heater. This replacement system does not include one. If you want to maintain bathwater temperature during operation, view our whirlpool tub heater replacements.
Need Help Before Ordering?
Send clear photos of the original pump label, keypad, plumbing connections, control components, and available installation space.
Call or text Whirly Bros at (951) 897-1878
Read the Complete Kohler 73533-AA Replacement Guide →
Kohler® is a registered trademark of Kohler Co. Kohler names and part numbers are used solely to identify compatibility. This aftermarket replacement system is not manufactured, sponsored, authorized, or endorsed by Kohler Co. Original Kohler components are not included.
